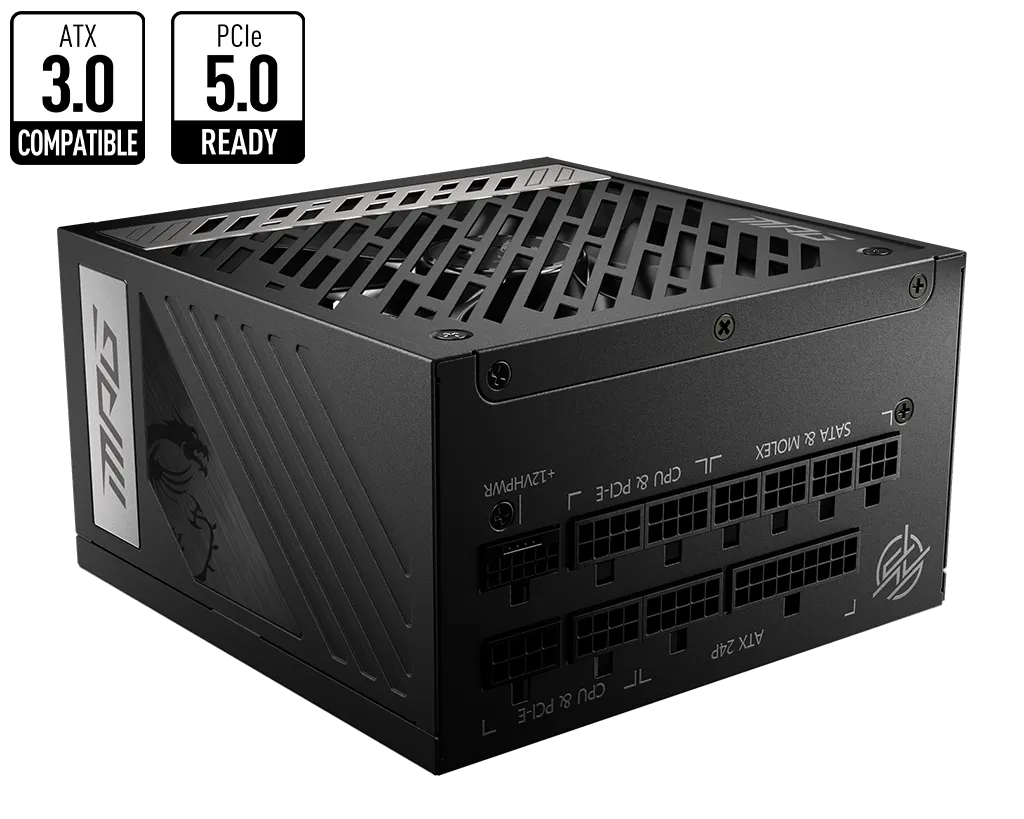

Product Details
+
MPG A850G PCIE5
- Supports Nvidia® GeForce RTX® 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design

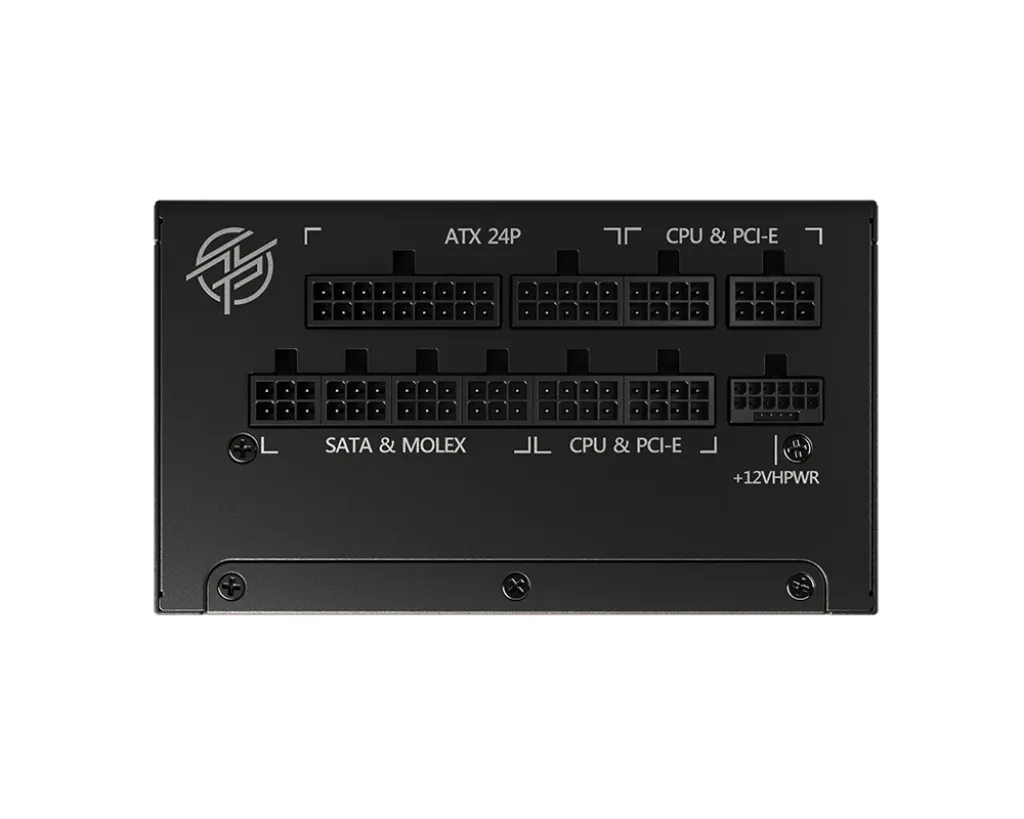

CONNECTOR | ||||||||
---|---|---|---|---|---|---|---|---|
ATX(20 4 PIN) | EPS(4 4 PIN) | PCI-E(6 2 PIN) | PCI-E(16 PIN) | SATA | MOLEX(PERIPHERAL) | FDD | ||
1 | 2 | 6 | 1 | 8 | 4 | 1 |
MPG A850G | ||||||||
---|---|---|---|---|---|---|---|---|
AC Input | 100V-240V~, 10A, 50~60Hz | |||||||
DC Output | 5V | 3.3V | 12V | -12V | 5Vsb | |||
22.0A | 22.0A | 70.8A | 0.3A | 3.0A | ||||
Total Power | 120W | 850W | 3.6W | 15W | ||||
850W |
