Specifications:

• Product Number: AEROLUX-1000-80GOLD

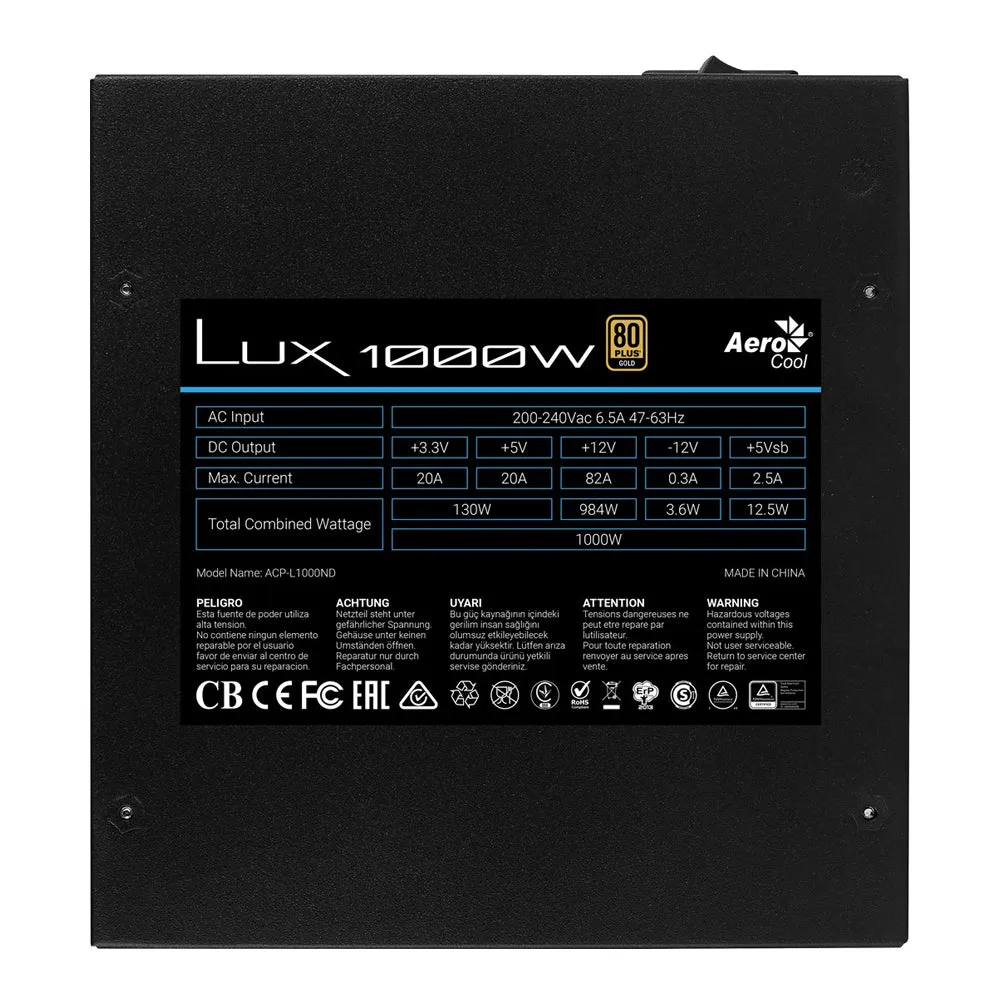

• Total power: 1000 W
• AC input voltage: 200 - 240 V
• AC input frequency: 47 - 63 Hz
• Input current: 6.5 A
• Combined power ( 3.3V): 130 W
• Combined power ( 12V): 984 W
• Combined power ( 5V): 130 W
• Combined power (-12V): 3.6 W
• Combined power ( 5Vsb): 12.5 W
• Max output current ( 3.3V): 20 A
• Max output current ( 12V): 82 A
• Max output current ( 5V): 20 A
• Max output current (-12V): 0.3 A
• Max output current ( 5Vsb): 2.5 A
• Efficiency: 90%
• Power protection features:
• Over power
• Over voltage
• Short circuit
• Under voltage

Ports & interfaces

• Motherboard power connector: 20 4 pin ATX
• Number of SATA power connectors: 8
• Number of PATA power connectors: 4
• PCI Express power connectors (6 2 pin): 4

Performance

• 80 PLUS certification: 80 PLUS Gold
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.4

Design

• Product colour:
• Black
• Blue
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
