Adapter panels are NOT included

This fiber patch panel is compatible with LGX adapter panel inserts and AFL splice trays. To find out more, give us a call or email us.

Description

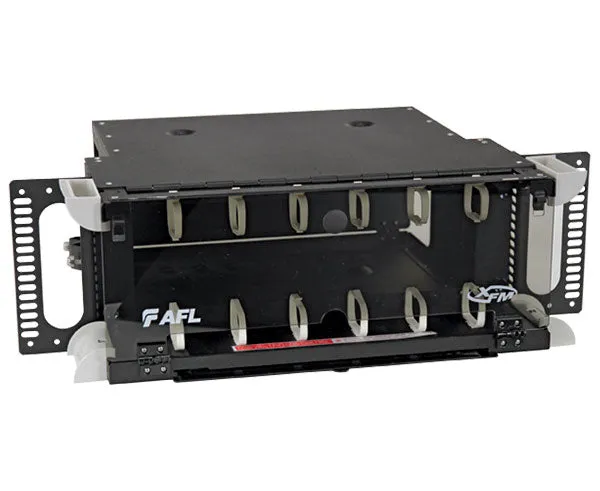

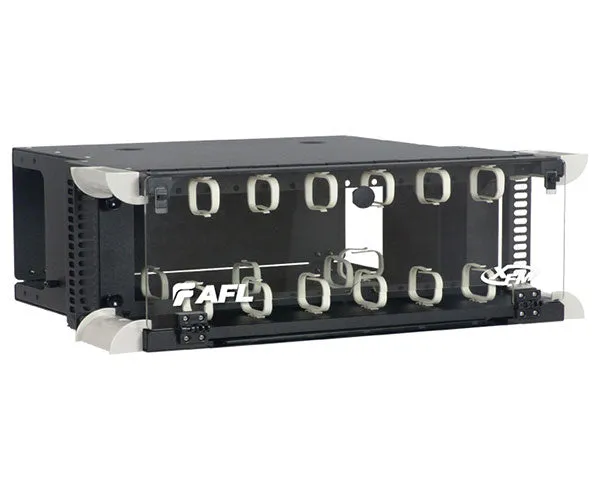

AFL Fiber Patch Panel, Fixed, 4RU, Holds 12 Adapter Panels, LGX Compatible, Black

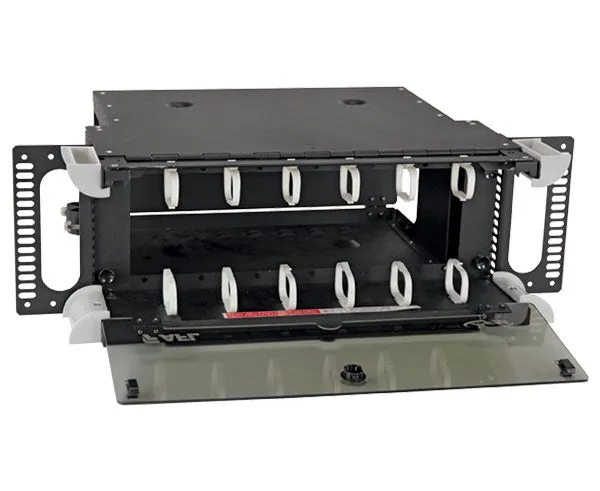

The Xpress Fiber Management (XFM) 4U patch panel is a rack mountable interconnect point specifically designed to manage dense fiber applications. Based on the LGX™ intermateability platform, the panel is fully compatible with AFL's XFM Optical Cassette and Poli-MOD solutions, offering enhanced management of densities up to 288F using MTP/MPO, single fiber, or patch and splice methodologies. A hinged fiber management panel can be secured in an upright or lowered position, which provides enhanced cable routing exiting the panel to the left or right, and also allows cable assemblies to be routed up and across the front of the panel for extreme density management. This panel can be provisioned with a key lock at the time of order for secure environments.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with   and

Features

Features

• Aluminum construction
• Textured black powder coat finish
• Universal WECO/TIA 19"/23" rack compatibility
• (12) LGX 118 adapter plate / module mounting positions
• Mounting depth adjustable from flush to 8" in 1" increments

• Data Centers
• Enterprise Networks
• Telecommunications Closets
• Central Offices / Headends

Specifications

Specifications

Panels: (12) LGX Adapter Panels (Sold Separately)

Depth: 15.5"
Height: 7"
Width: 17"
Unloaded Weight: 19 lbs

Color: Black
Material: Steel
