Specifications:

• Product Number: 90YE00N1-B0NA00

• Intel Form Factor: SFX-L
• PFC Type: Active PFC
• ATX 3.0: Yes
• Dimensions: 125 x 125 x 63.5 mm
• Efficiency: 80Plus Platinum
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS

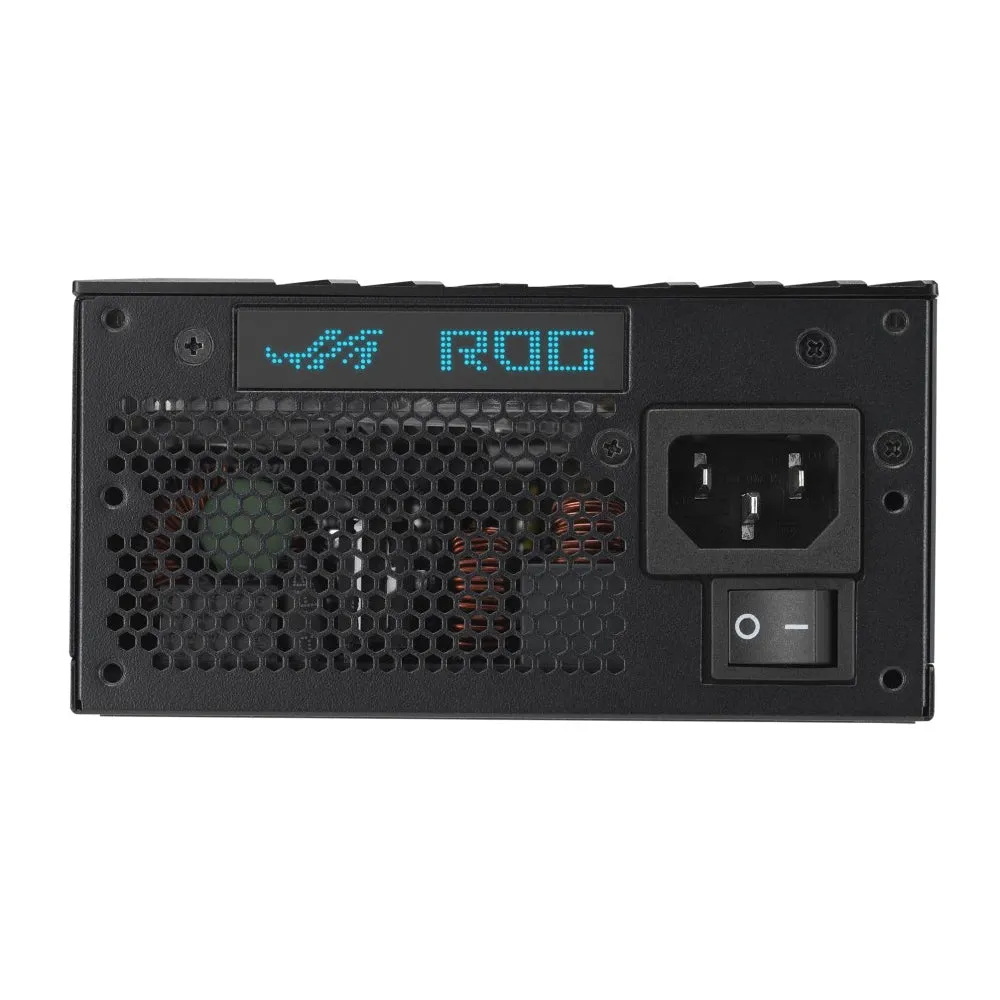

• AC Input Range: 100-240Vac
• DC Output Voltage: 3.3V 5V 12V -12V 5Vsb
• Maximum Load: 20A 20A 83.3A 0.8A 2.5A
• Combined Load: 110W 110W 1000W 9.6W 12.5W
• Total Output: 1000W

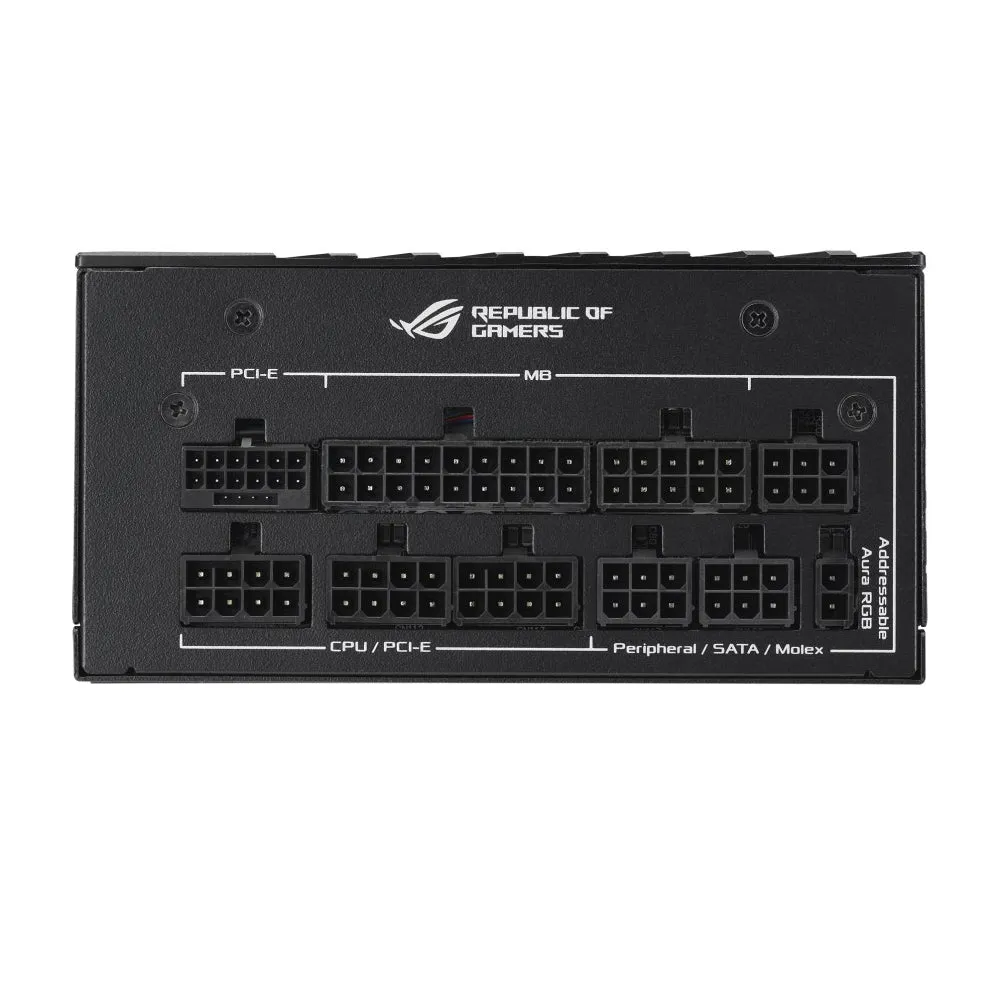

• Cable Connectors
• MB 24/20-pin x 1
• CPU 4 4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 8-pin x 3
• SATA x 6
• PERIPHERAL x 4

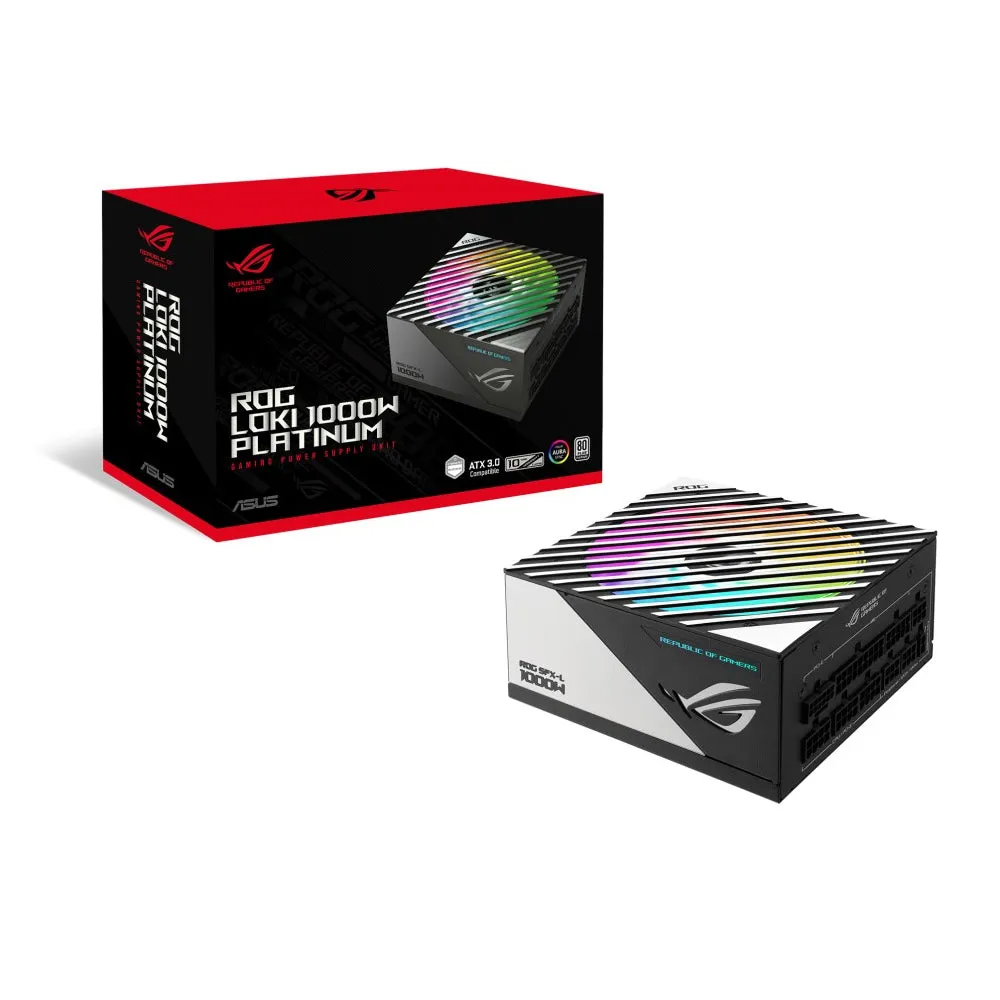

• Package Contents
• Power Cord x 1
• Motherboard Power Cable x 1 (450mm)
• CPU Cable x 2 (550mm)
• PCI-E Gen 5 16-pin Cable x 1 (450mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
• PCI-E 1-to-1 Cable x 1 (450mm)
• SATA 1-to-3 Cable x 2 (300 200 100mm)
• Peripheral 1-to-4 Cable x 1 (300 100 100 100mm)
• Addressable RGB Cable x 1 (800mm)
• User Manual x 1
• ATX to SFX adapter bracket x 1
• Weight: 1.83kg (single PSU)
• AURA SYNC: ARGB
• Cybenetics Noise Level Certification: A
