Product Details
＋
Specifications:
- Product Number: 90YE00U1-B0NB00
- Model: AP-750G
- Intel Form Factor: ATX12V
- PFC Type: Active PFC
- ATX 3.0: Yes
- Dimensions: 150 x 150 x 86 mm
- Efficiency: 80Plus Gold
- Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
- Hazardous Materials: ROHS
- AC Input Range: 100-240Vac
- DC Output Voltage: 3.3V 5V 12V -12V 5Vsb
- Maximum Load: 20A20A62A 0.3A 2.5A
- Combined Load: 110W 110W 744W 3.6W 12.5W
- Total Output: 750W

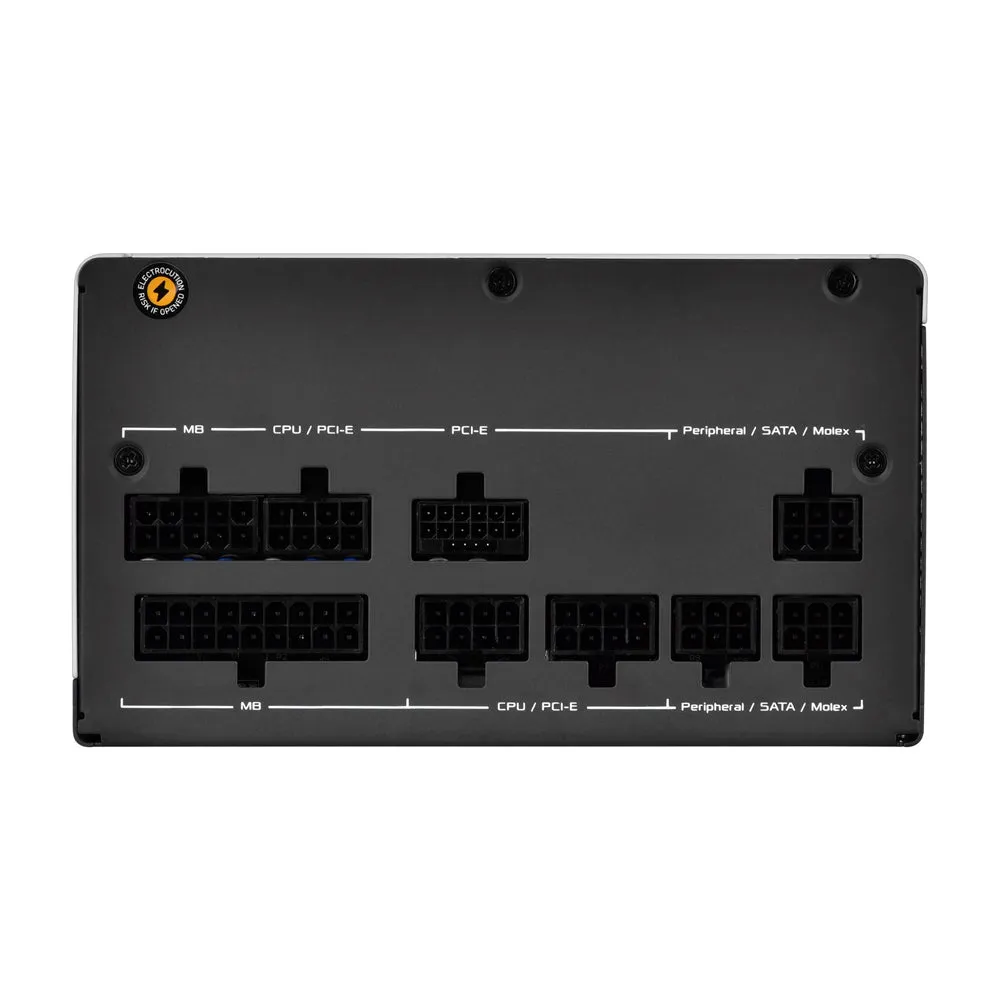

- Cable Connectors
- MB 24/20-pin x 1
- CPU 4 4-pin x 2
- PCI-E 16-pin x 1 (both PSU & connector side)
- PCI-E 8-pin x 3
- SATA x 5
- PERIPHERAL x 3

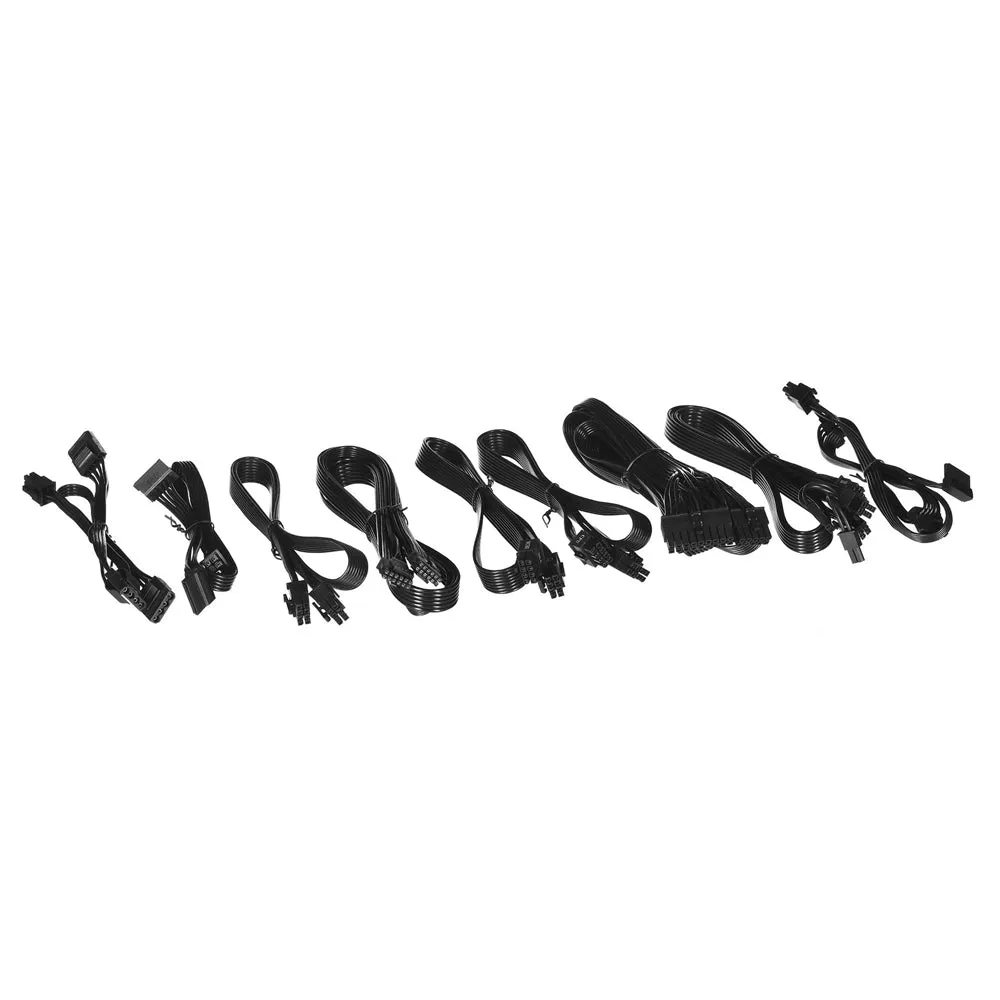

- Package Contents
- Power Cord x 1
- Motherboard Power Cable x 1 (610mm)
- CPU Cable x 2 (650mm)
- PCI-E Gen 5 16-pin Cable x 1 (675mm)
- PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
- PCI-E 1-to-1 Cable x 1 (675mm)
- SATA 1-to-2 Cable x 1 (400 120mm)
- SATA 1-to-3 Cable x 1 (400 120 120mm)
- Peripheral 1-to-3 Cable x 1 (400 150 150mm)
- User Manual x 1
- Weight: 1.466 kg (single PSU)
