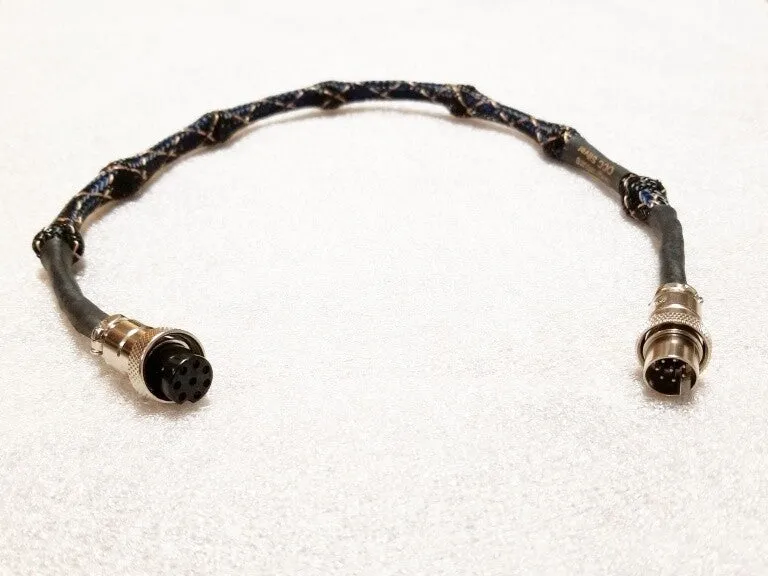

Signature Lumin cable for A1/S1/U1 DC-specialty power cable
The Signature OCC Silver Lumin A1/S1/U1 DC cable provides a huge upgrade in performance over the stock Lumin A1/S1/U1 DC cable. It is used for the following Lumin products being powered with the standard A1/S1/U1 power supply.
- Lumin A1
- Lumin S1
- Lumin U1
At the heart of these cables is Ohno Continuous Cast (OCC) silver with a purity of 99.99998% (7N). OCC silver does not possess the brightness/glare often associated with conventional silver due to the elimination of crystal boundaries.
Cable Geometry: 3 twisted pairs of Teflon insulated solid core OCC silver wire:
- one 20AWG twisted pair for the high current DC rail
- two 22AWG twisted pairs for the low current DC rails
- special carbon fiber spacers provide separation between twisted pairs to reduce noise floor.

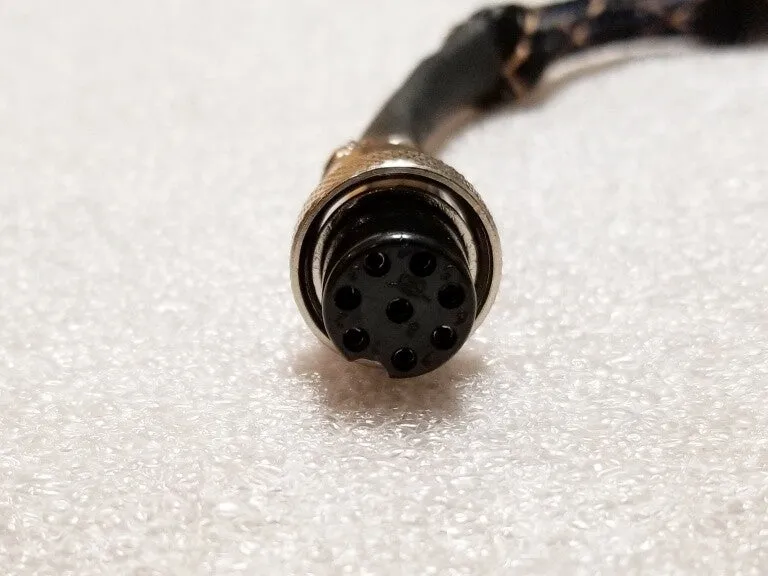

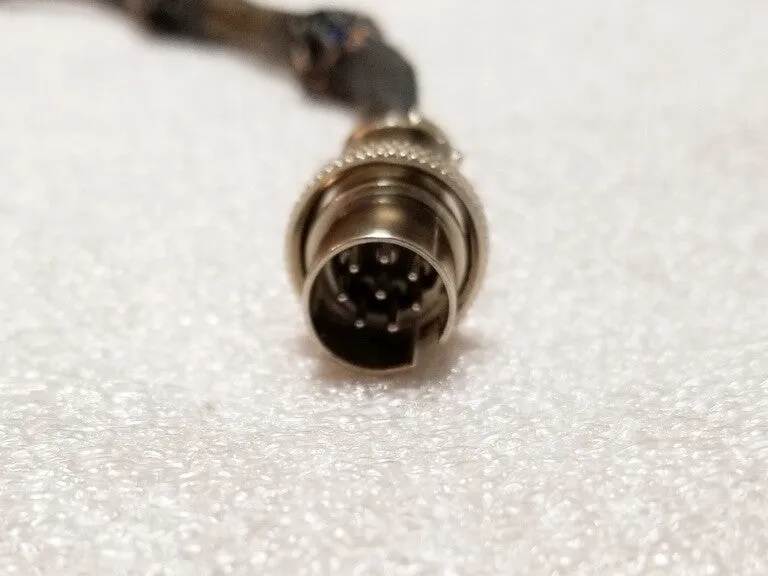

Connectors: The following connectors are used for PSU and component side:
- Standard Lumin 8pin connector for A1/S1/U1 power supply connection.
- Standard Lumin 8 pin connector for A1/S1/U1 component connection.
- Covering: The cable is finished with Techflex expandable sleeving.
Other Details: The wire and connectors have been cryogenically treated. Mundorf Silver-Gold Supreme Solder is used for all solder connections.
