Technical Specs :-

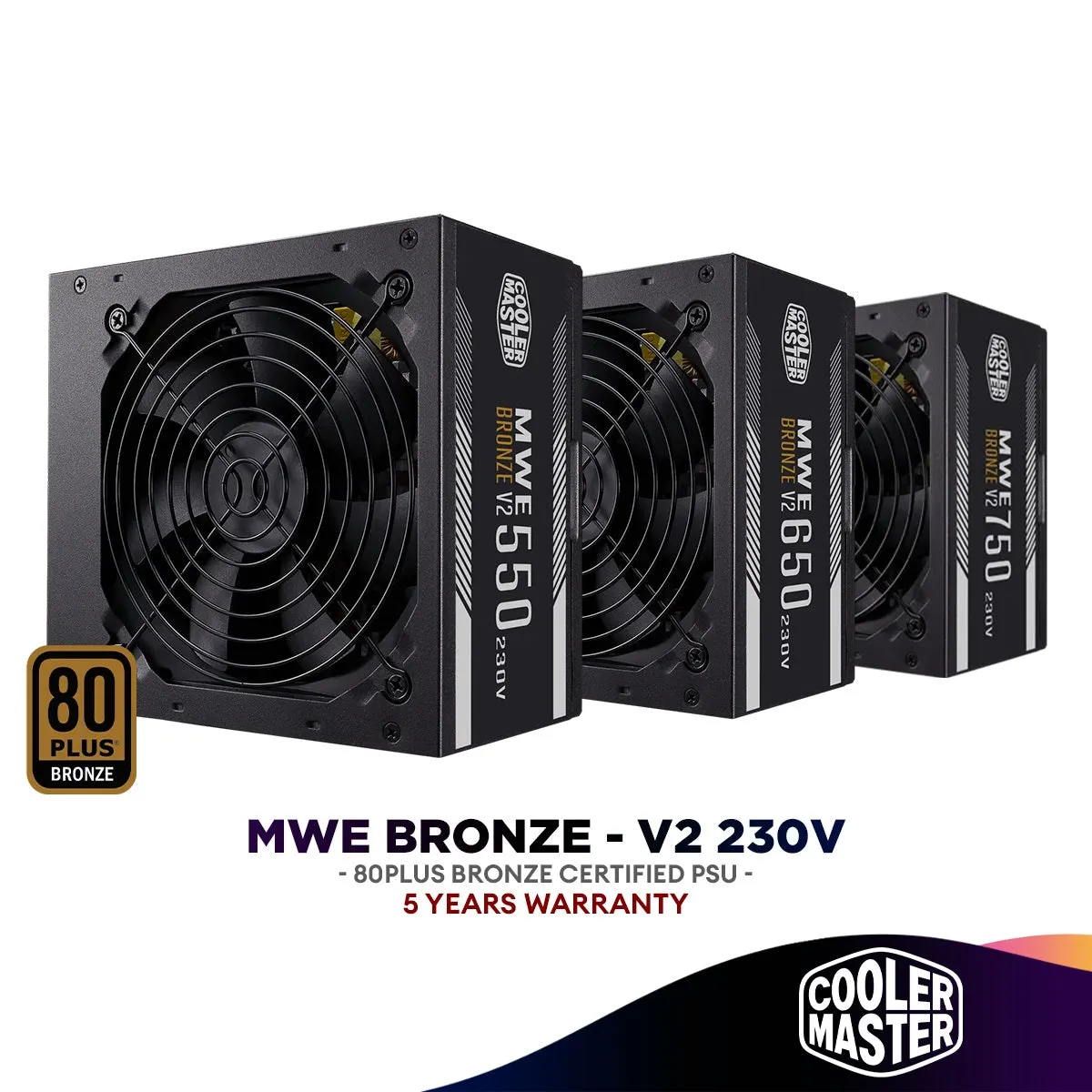

SERIES : MWE BRONZE

POWER : 550W / 650W / 750W

CERTIFIED : 80 BRONZE

EFFICIENCY : 88% Typically

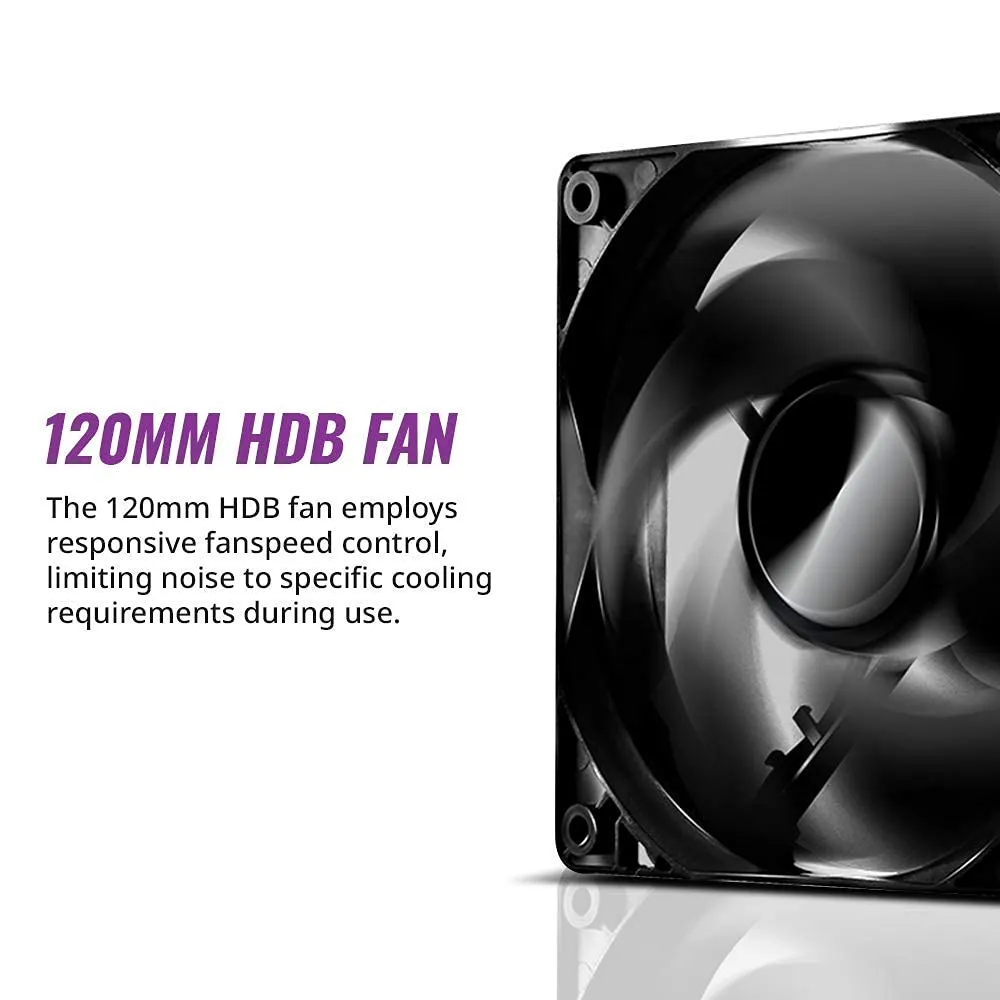

FAN : 120MM

FAN SPEED : 1500 RPM

DIMENSION : 140 x 150 x 86 mm

INPUT VOLTAGE : 200-240Vac

INPUT CURRENT : 10-5A

INPUT FREQUENCY : 50-60Hz

PROTECTIONS :-

OVP / OPP / SCP / UVP / OTP

REGULATOR :-

CCC / CE / TUV-RH / RCM / EAC / cTUVus / FCC / BSMI / KC / CB

MODEL (550W) CONNECTORS :-

(1x) ATX 24 Pin Connectors

(1x) EPS 4 4 Pin Connectors

(2x) PCI-e 6 2 Pin Connectors

(6x) SATA Connectors

(3x) Peripheral 4 Pin Connectors

MODEL (650W) CONNECTORS :-

(1x) ATX 24 Pin Connectors

(1x) EPS 4 4 Pin Connectors

(1x) EPS 8 Pin Connector

(4x) PCI-e 6 2 Pin Connectors

(6x) SATA Connectors

(3x) Peripheral 4 Pin Connectors

MODEL (750W) CONNECTORS :-

(1x) ATX 24 Pin Connectors

(1x) EPS 4 4 Pin Connectors

(1x) EPS 8 Pin Connector

(4x) PCI-e 6 2 Pin Connectors

(6x) SATA Connectors

(3x) Peripheral 4 Pin Connectors
