Product Details
＋
Highlight
- 80 PLUS Platinum Rated SFX Power_ Massive Platinum-rated power in a compact SFX form-factor, perfect for the most power-dense small-form-factor PCs or saving space in larger cases.
- ATX 3.1 Compliant & PCIe 5.1 Ready_ Compliant with the ATX 3.1 power standard from Intel®, supporting the PCIe Gen 5 platform and resisting transient power spikes.

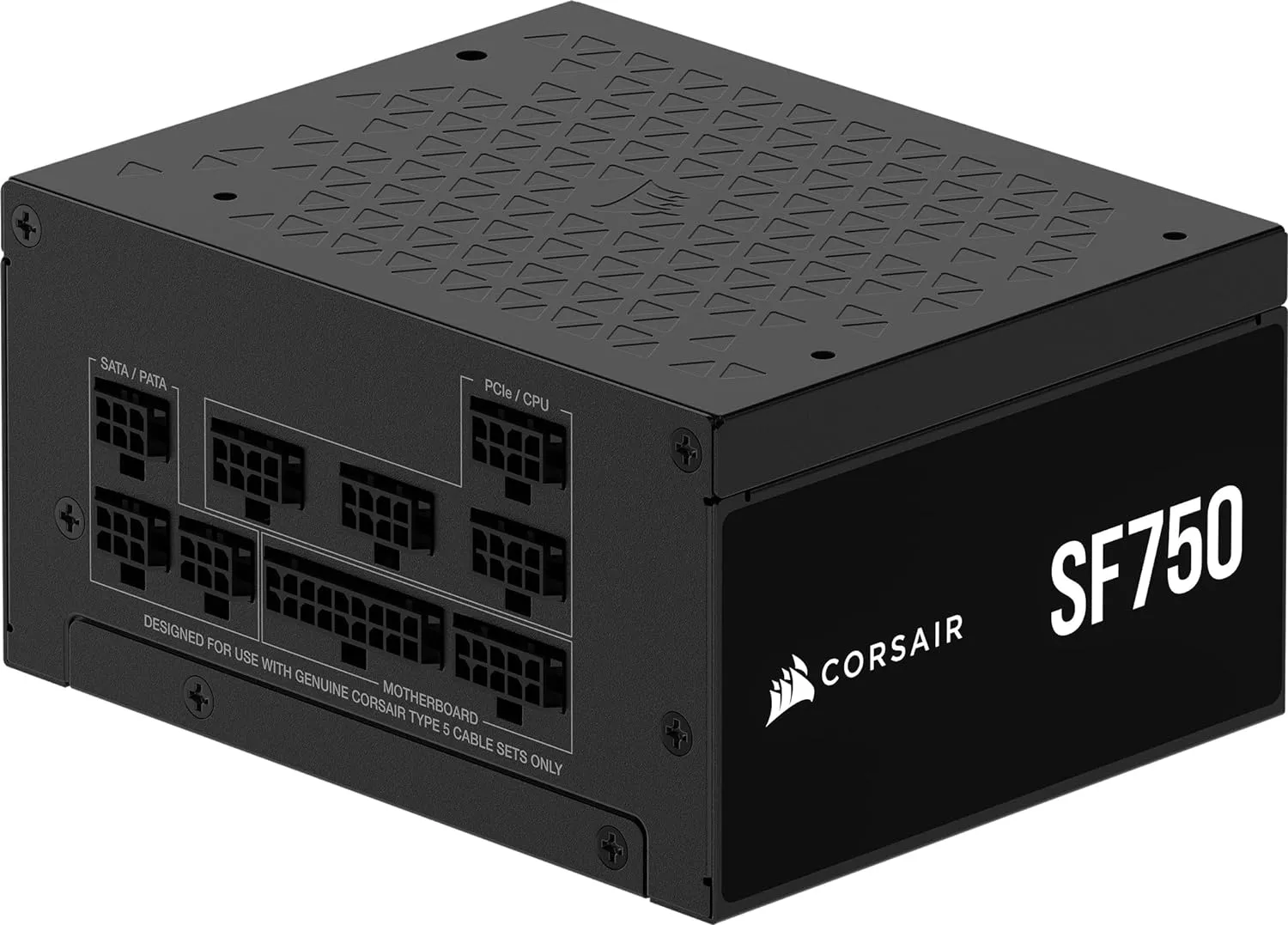

- Fully Modular, Type-5 Micro-Fit PSU Connectors_ With flexible cabling, taking up less space for tidy cable management and compatibility in small cases.
- 92mm PWM Cooling Fan_ Delivers powerful cooling with low-noise operation thanks to a fluid dynamic bearing.
- 105°C Rated Japanese Capacitors_ For unwavering power and reliability.
- Zero RPM Mode_ The fan stays off until it’s needed, for near-silent operation at low and medium loads.
- 50°C Continuous Operating Temperature_ For reliable power even under high-stress conditions.
- SFX-to-ATX Bracket Included_ Enables installation into ATX cases for more cable space in larger systems.
-
Seven-Year Warranty_ For complete peace of mind.
TECHNICAL SPECIFICATIONS
|
Model |
SF750 |
SF850 |
SF1000 |
|
SKU Number |
CP-9020284 |
CP-9020256 |
CP-9020257 |
|
Form Factor |
SFX |
||
|
Measurements |
100mm x 125mm x 63.5mm |
||
|
AC Input |
100V - 240V / 10A-5A |
||
|
80 PLUS / Cybenetic Rating |
80 PLUS Platinum / Cybenetics Platinum |
||
|
ATX12V Version |
3.1 |
||
|
EPS12V Version |
2.92 |
||
|
PCIe Version |
5.1 Ready |
||
|
Modularity |
Fully Modular |
||
|
CORSAIR Connector Type (PSU) |
Type-5 Micro-Fit |
||
|
Cable Type |
Individually Sleeved |
||
|
Fan Size / Type |
92mm / Fluid Dynamic Bearing |
||
|
Zero RPM Mode |
Yes |
||
|
105°C Rated Japanese Capacitors |
Yes |
||
|
Continuous Operating Temperature |
50°C |
||
|
Warranty |
7-Years |
||
|
SFX-to-ATXAdapter Bracket |
Yes |
||
|
Protections |
OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OTP (Over Temp), OPP (Over Power) |
||
