DA6 Universal Brackets

840556076720

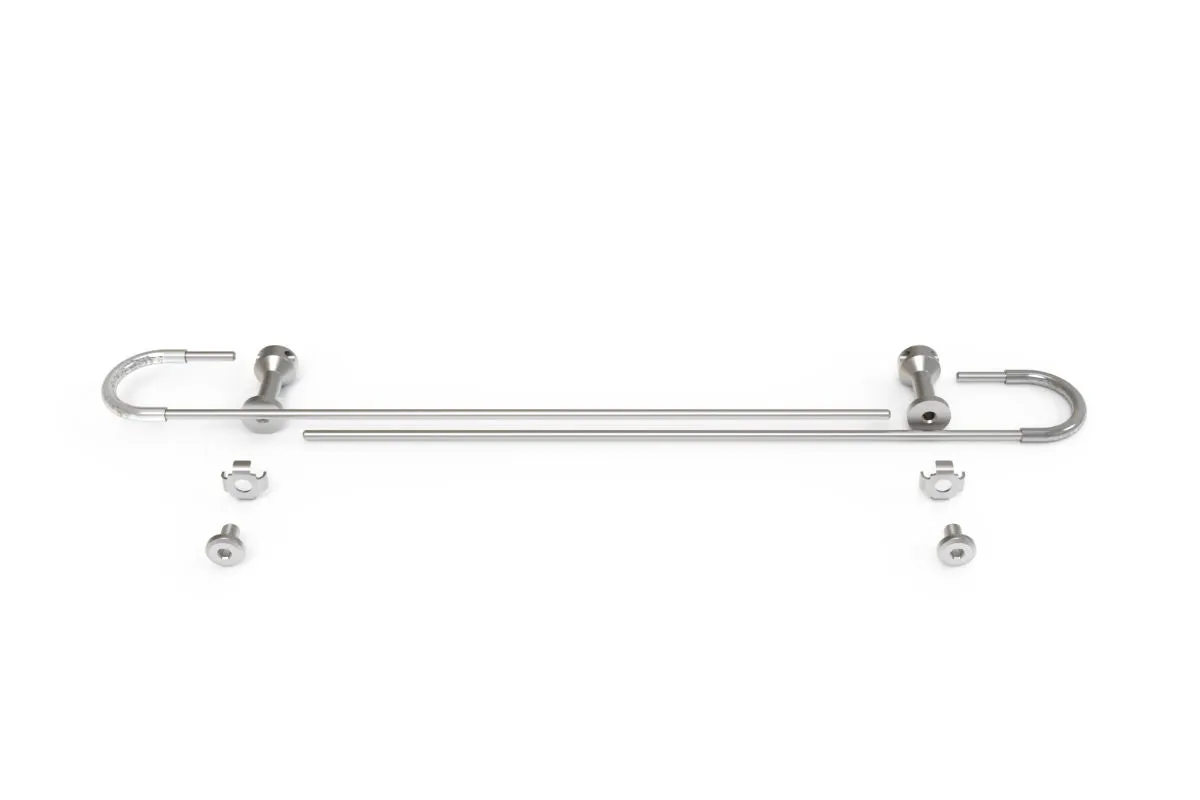

The DA6 universal brackets that allow things such as PSUs, Fans, Drives or pretty much anything to be fitted to the case. Each bracket consists of 2 each of the following:

• Steel Rod – these form the main structure of the bracket and secure to the tubes. They also feature a silicone sleeve to avoid damage to the tubes.
• Tube Mount – fit at either side of the bracket assembly, against the tubes and connect the rods to each other
• Washers – specially designed to secure the rods, additional ones are used to attach parts to the bracket

• Screws – Used to secure all the different parts that form the bracket together and compress the rods to lock them against the tubes.

Attaching Hardware to the Brackets

There are 2 main ways to attach hardware to the bracket:
1. Using the washers screws
2. Sandwich the rods between 2 components

Washers will be the primary choice for fitting hardware to the brackets. They provide a fixing point for the hardware and keep it centered between the rods. The washers have a hole diameter of 4mm so all screws up to that thread size can be used.
