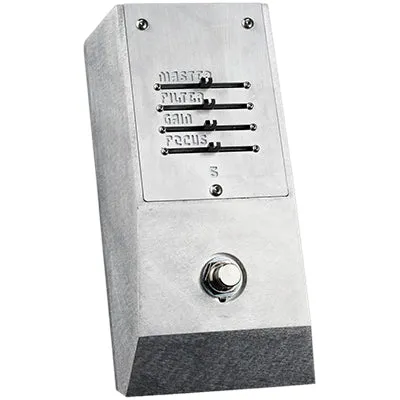

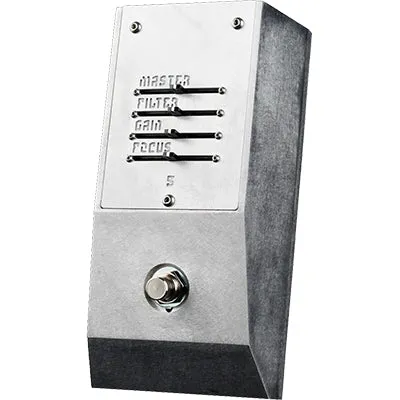

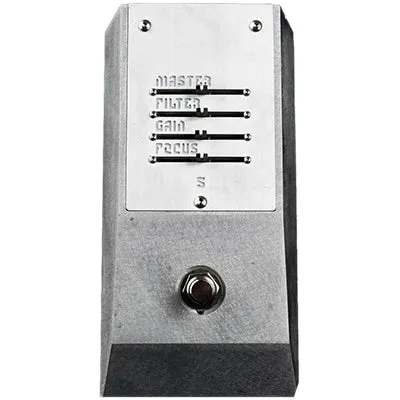

The 0xEAE Boost is the first entry in a new pedal series developed in conjunction with the design collective .

The 0xEAE collaboration began as an indestructible enclosure created in the distinct, utilitarian-yet-elevated visual language of Obstructures, culminating in a neo-brutalist homage to the iconic sloped fuzz enclosures of the 60s and 70s.

The exterior physical design informed the intent of the circuitry within: a versatile signal boost/overdrive with the potential for a razor-sharp treble response and excessively high output levels. The circuit itself is comprised of a discrete op amp gain stage with a treble boost in front, forming a densely textured upper midrange character laden with higher order intermodulation products. A mix of active and passive tone controls allows for dramatic alterations in sonic character. We also took extreme measures to engineer a high-quality power supply that is fully protected from excessive voltage, improper setup, and external interference.

The end result is an object that is maximally robust, designed for a lifetime on the road, on stage, and in the studio.

Specifications

Bypass: Relay switching with op amp buffered bypass; red/green LED indicator. (Note: alternate firmware with traditional on/off action is available upon request.)

Input impedance @ 1 Khz: 2.2MΩ

Output impedance @ 1 Khz: <1kΩ

Power: 9V DC, 2.1 mm center negative barrel. The current draw when active is 120 mA. We recommend a regulated, isolated power supply rated for 200 mA minimum. The PSU input is protected against reverse polarity and over-voltage. Our pedals do not accept batteries.

Dimensions: 6.75” x 3.5” x 2”

Weight: 1.5 lbs

Controls

• Master: Output volume level. Ranges from -∞ dBu to an excess of 20 dBu. (Use judiciously.)

• Filter: Passive, variable frequency low pass filter. Slide right to cut high frequencies. Cutoff frequency ranges from outside the audio range at minimum to 480Hz at maximum.

• Gain: Primary gain stage. Adjustable from approximately 26 dB to 46 dB. Slide right to increase gain.

• Focus: Input treble boost. Ranges from 0 dB to 26 dB for high mid frequencies. Slide right to add saturation and harshness.

• Footswitch: Effect activator.

Changelog

• V1: initial release
