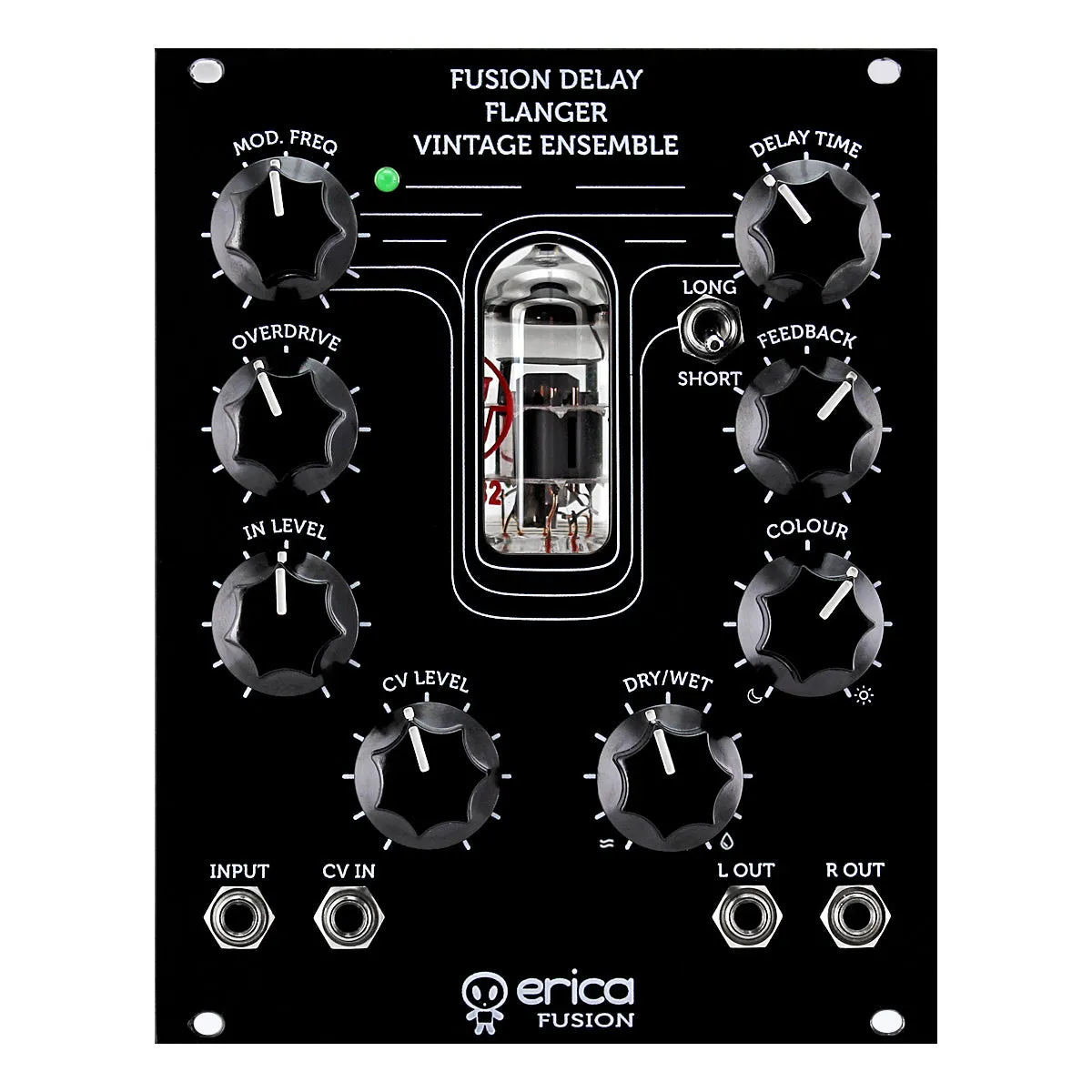

The Erica Synths Fusion Delay/Flanger/Vintage Ensemble module (20HP) is a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of sound.

The lowpass filtering is fully adjustable from none to extreme. A special feature, not found in eurorack, is the Vintage Stereo Ensemble – an effect that’s common on vintage synthesizers to create thick, moving and spatial sounds from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.

• Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

Brand new with warranty.

Video:

Product Specs

• Item Number: 14925
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Latvia
• EAN: 4751030820361
• Modular Grid: Eurorack
• Dimensions: 20 HP 35 mm deep
• Power: 35 mA 12V 170 mA -12V 0 mA 5V
