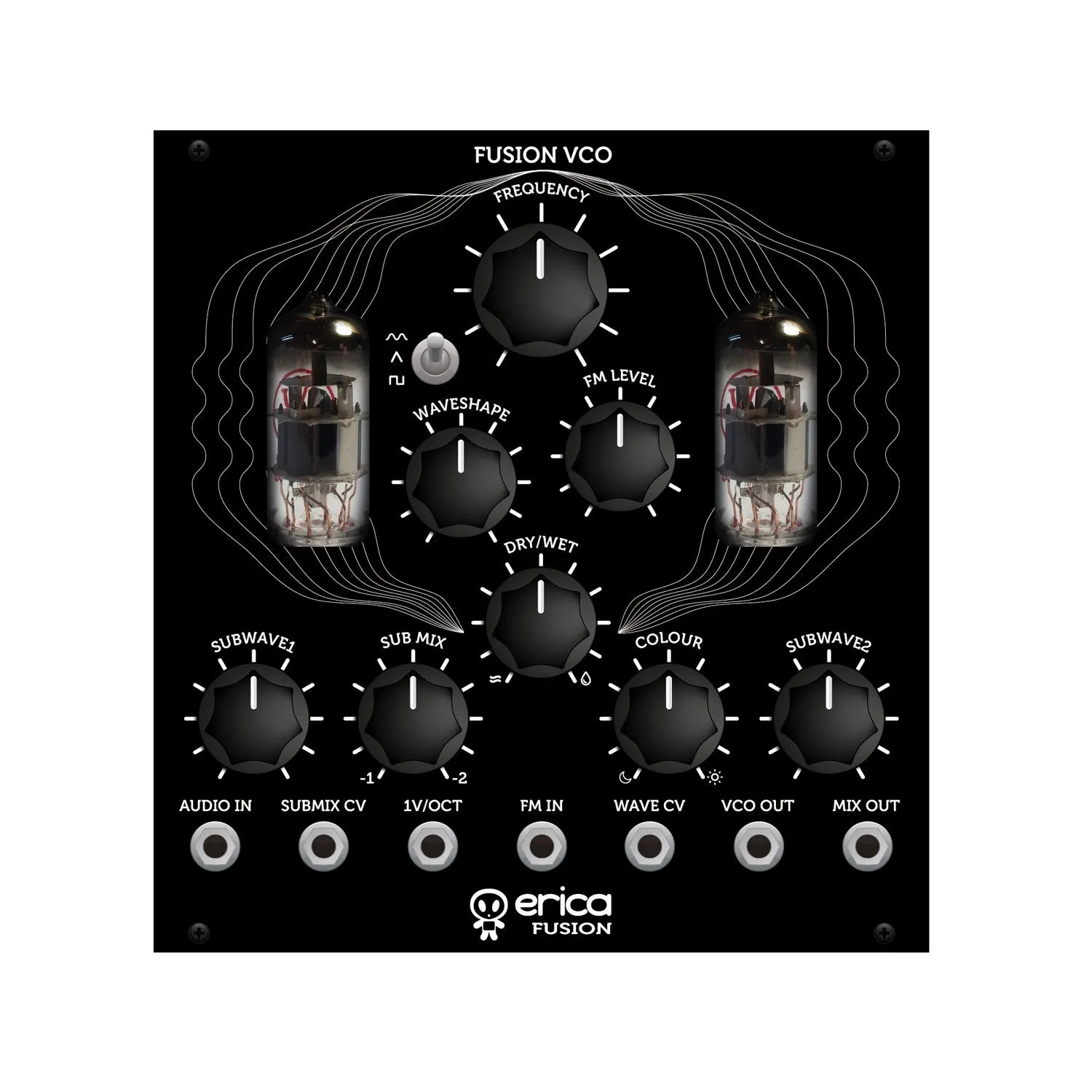

The Erica Synths Fusion VCO (24HP) fuses the great tuning of a digital VCO with the warm, unique sound of vacuum tubes that work in suboscillator circuit.

This module contains two double triodes in bistable latch connection that act as suboscillators: -1 and -2 octaves with plenty of mixing opportunities for amazing sonic results. External audio signal can replace internal VCO. If you want to go for really low frequencies and have a sound that sets your modular system apart from others – this is the module, you need!

• Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at start-up, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

Brand new with warranty

Video:

Product Specs

• Item Number: 14924
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Latvia
• EAN: 4751030820415
• Modular Grid: Eurorack
• Dimensions: 24 HP 35 mm deep
• Power: 215 mA 12V 185 mA -12V 0 mA 5V
