EVGA 700 Watt BQ Semi Modular 80 Bronze ATX PSU, Semi Modular 750W Power Supply, Fdb Fan

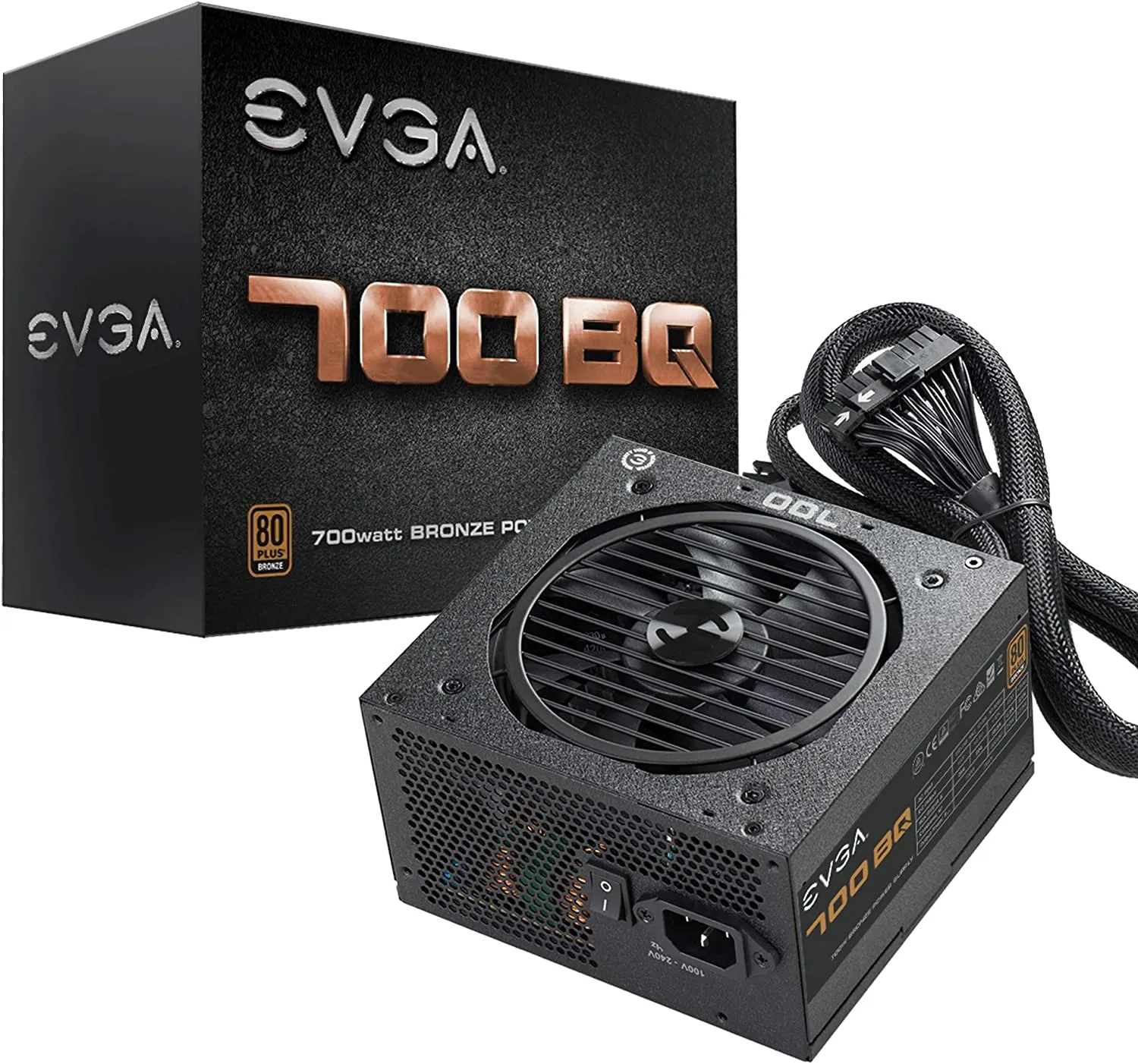

EVGA introduce the BQ Series of power supplies, designed with both beginner and enthusiast needs in mind. Presenting the next generation in value – the EVGA BQ 700 Watt PSU. These power supplies take some of the best features from EVGA's award winning power supply lineup, like a 120mm fan with near silent operation and modular cables to make one of the best values today in high performance power supplies.

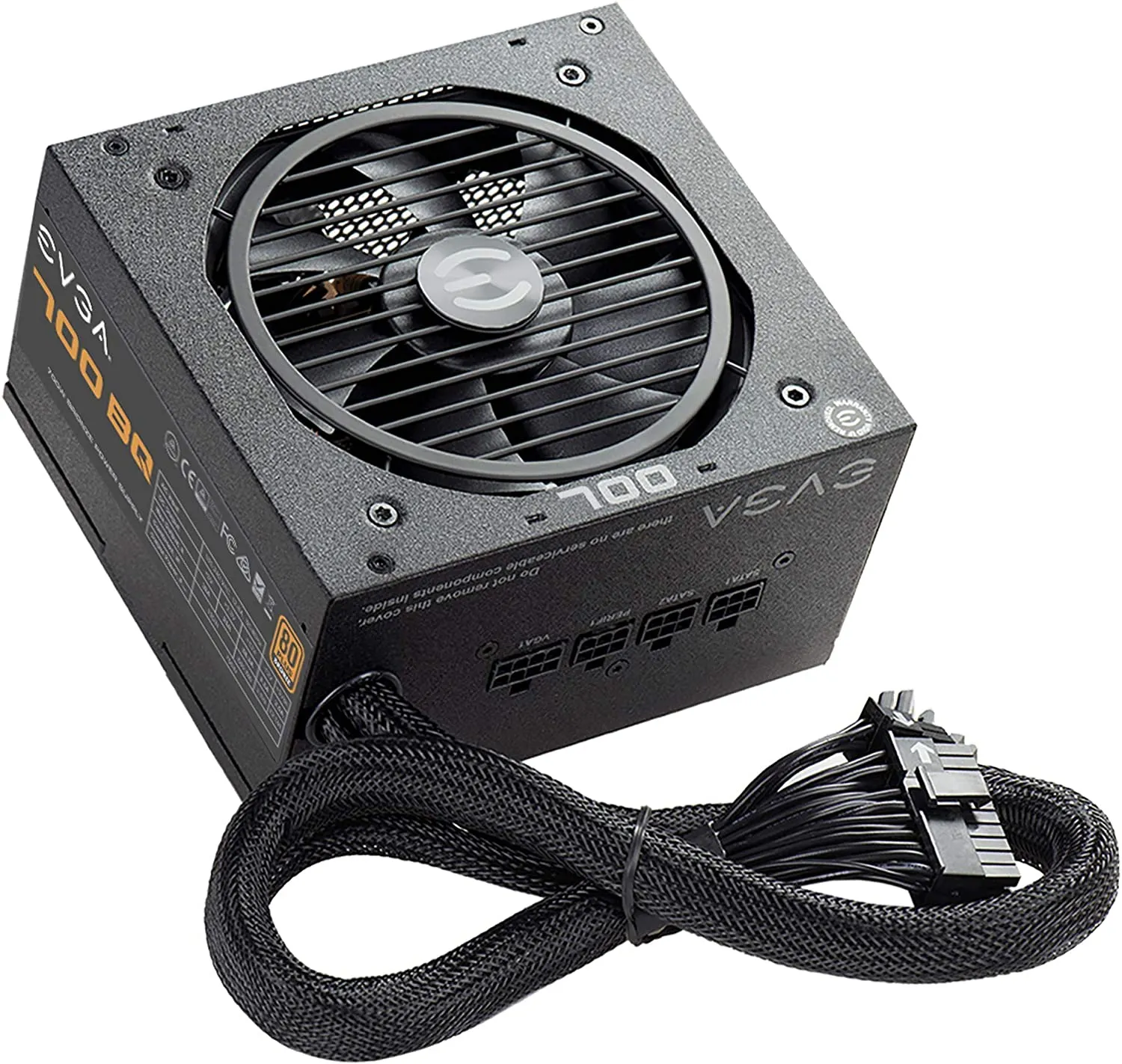

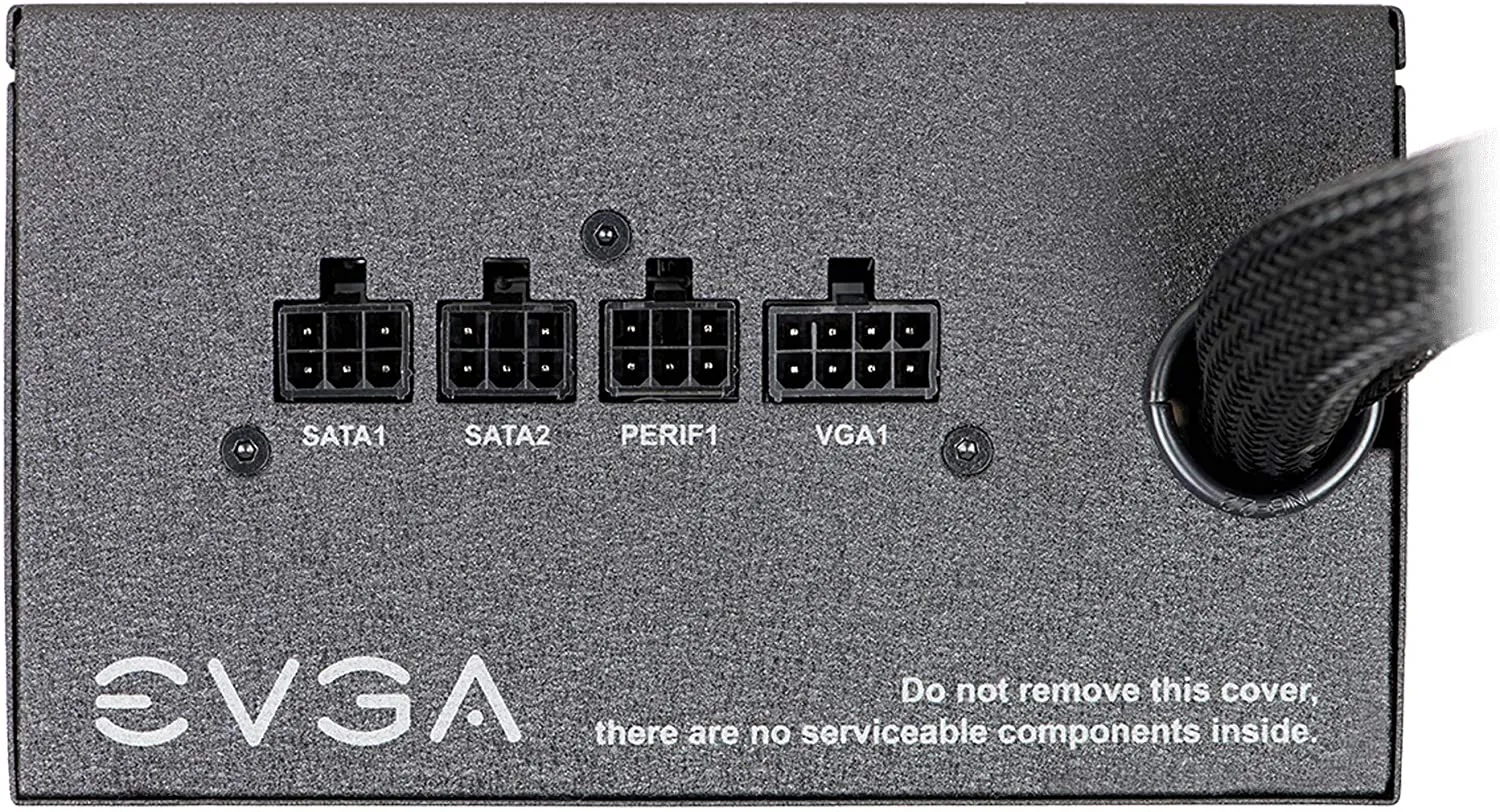

The EVGA BQ Series PSUs feature a hybrid modular design allowing you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter. Includes the following heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection).

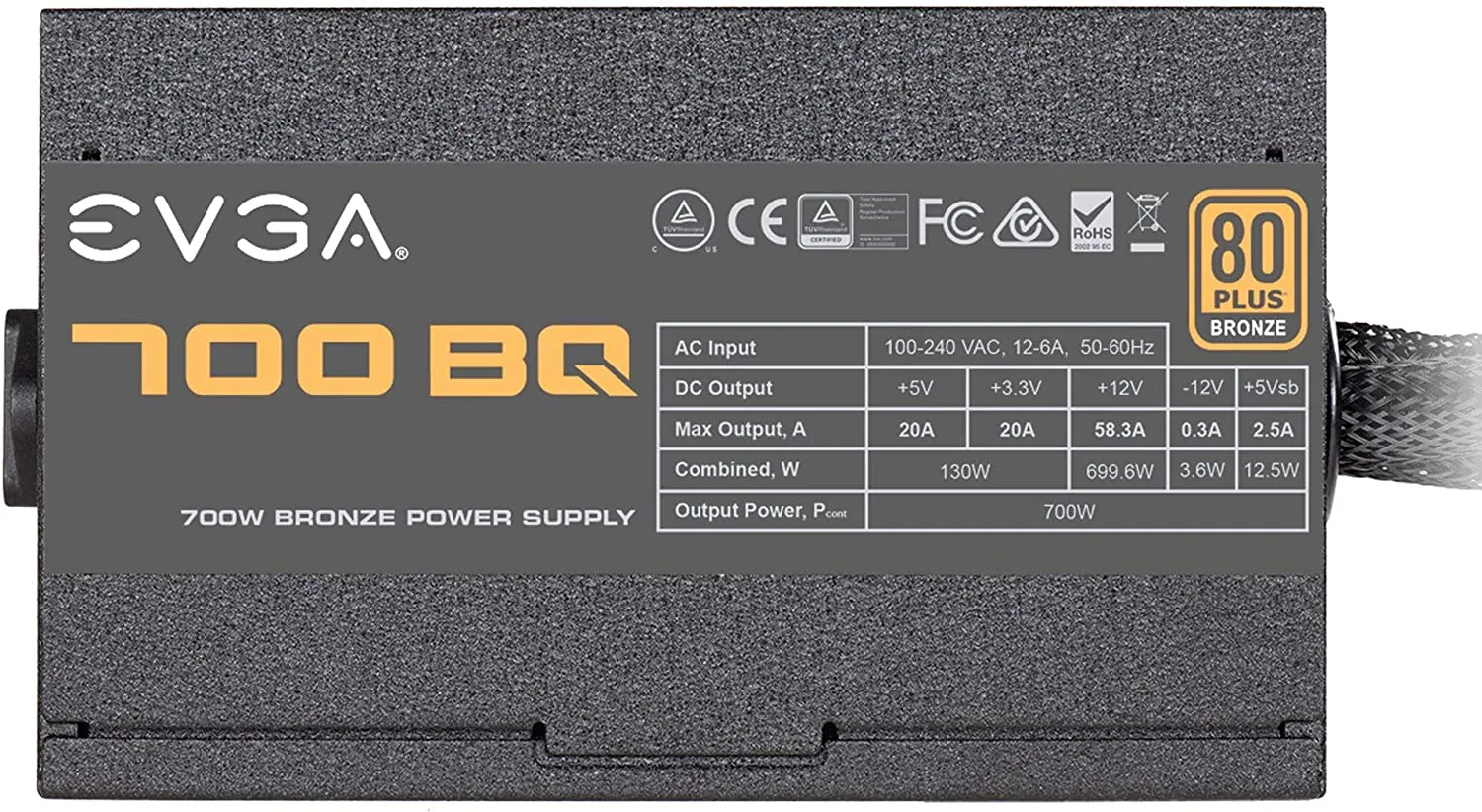

Specifications
Size: ATX
Edition: 700 BQ
Wattage: 700 W
80 PLUS Certification: 80 PLUS Bronze
Max. Efficiency (at 230Vac): 85 %
Cooling: Fan
Fans: 1 x 120mm
Internal 12V Rails: Single Rail
Rail 1 12V: 58.3 A
Rail 2 12V: N/A
Rail 3 12V: N/A
Rail 4 12V: N/A
Rail 5 12V: N/A
Rail 6 12V: N/A
Max. Combined Output 12V: 58.3 A
Modular: No
Modularity: Hybrid Modular
SLI/CrossFire: No
EPS 12V: Yes
Motherboard Connector: 20 4-pin

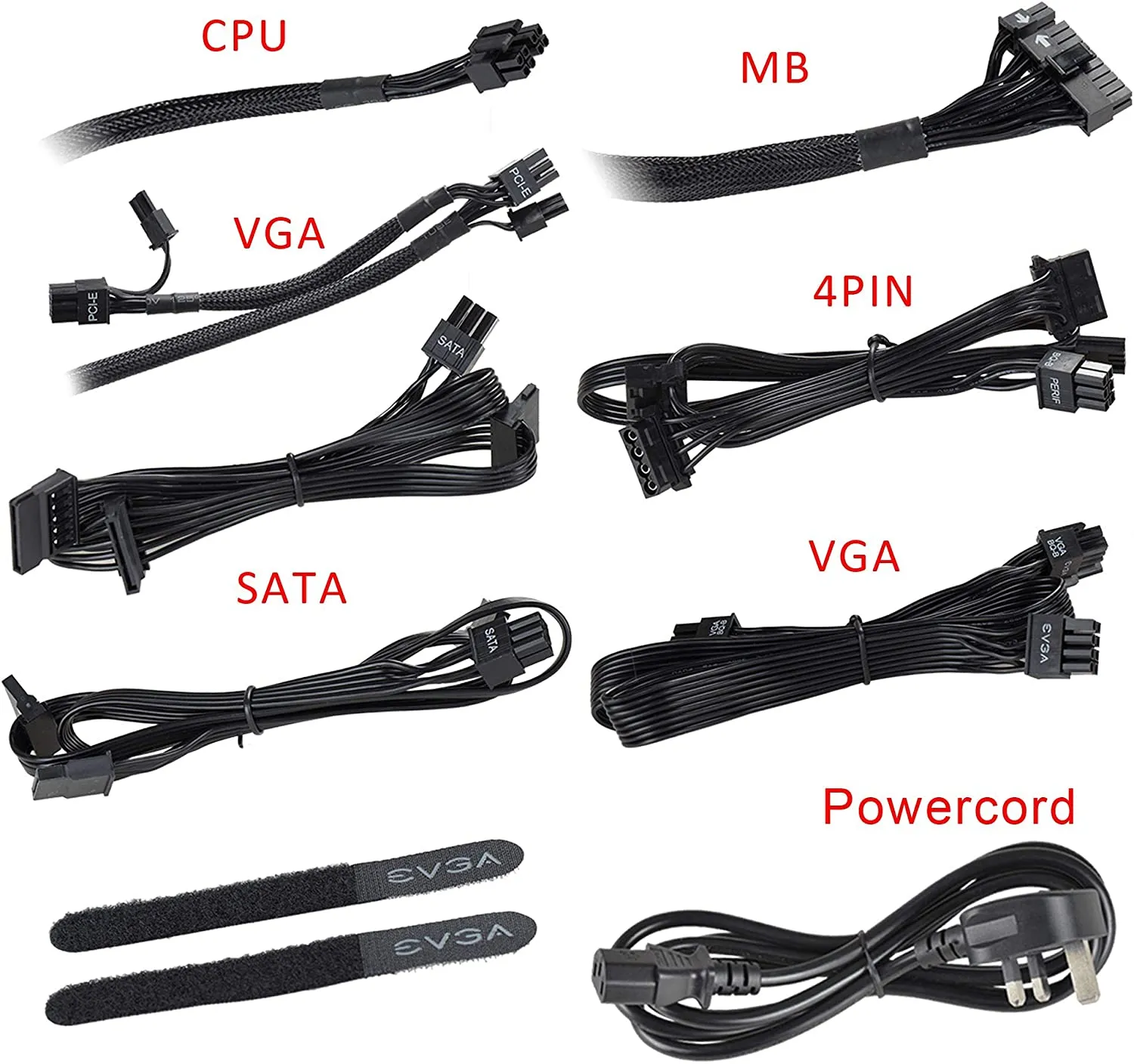

Connectors
1 x 4 4-pin CPU 12V (EPS)
1 x 4-pin FDD Adapter
3 x 4-pin Molex
4 x 6 2-pin PCIe
6 x SATA
Dimensions: 150 x 85 x 140 (WxHxD)
