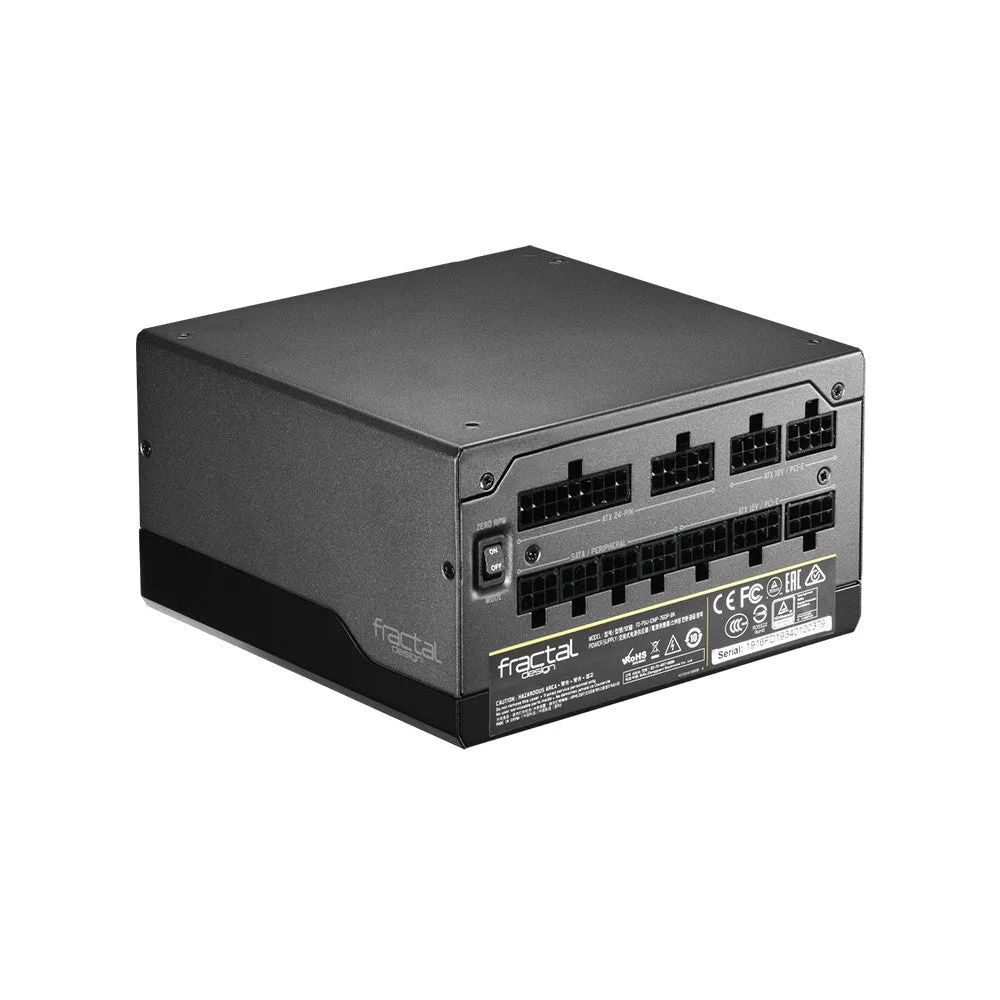

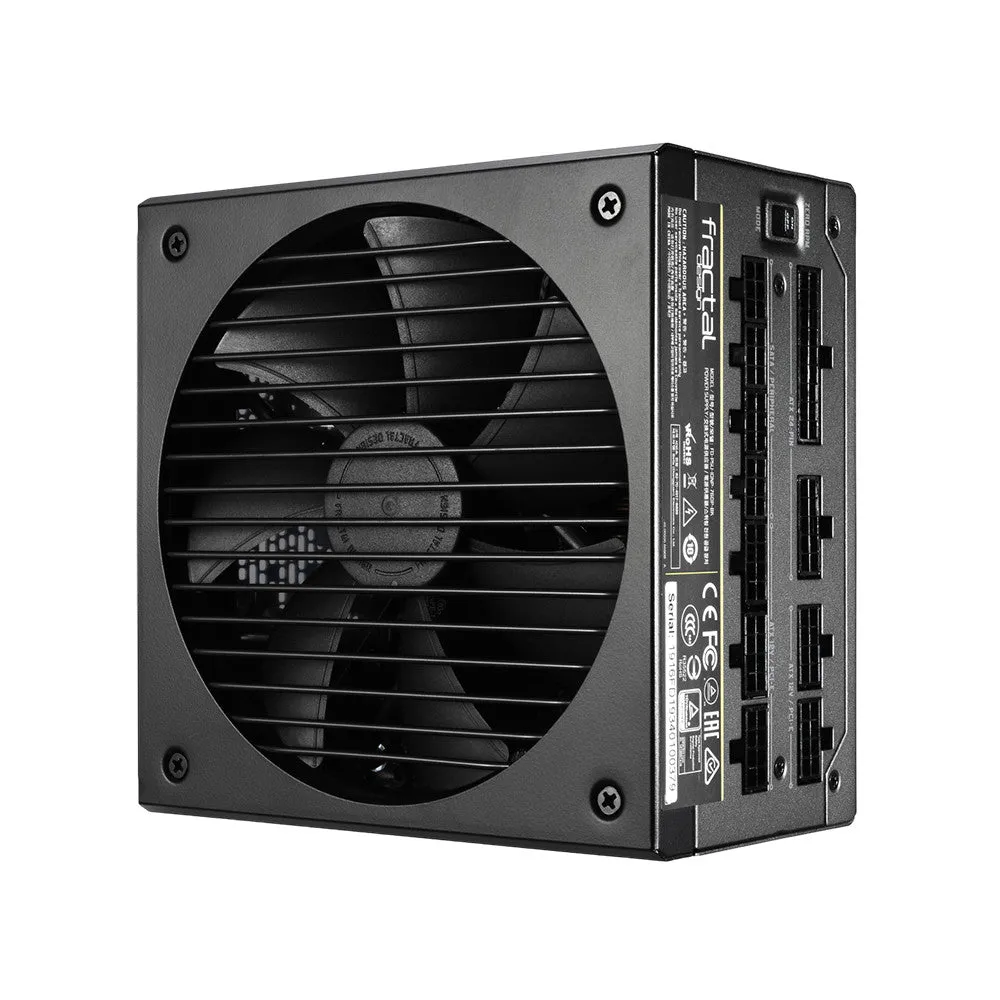

Ion 760W Platinum
The Ion Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality

• UltraFlex DC wires for effortless cable-routing and connectors

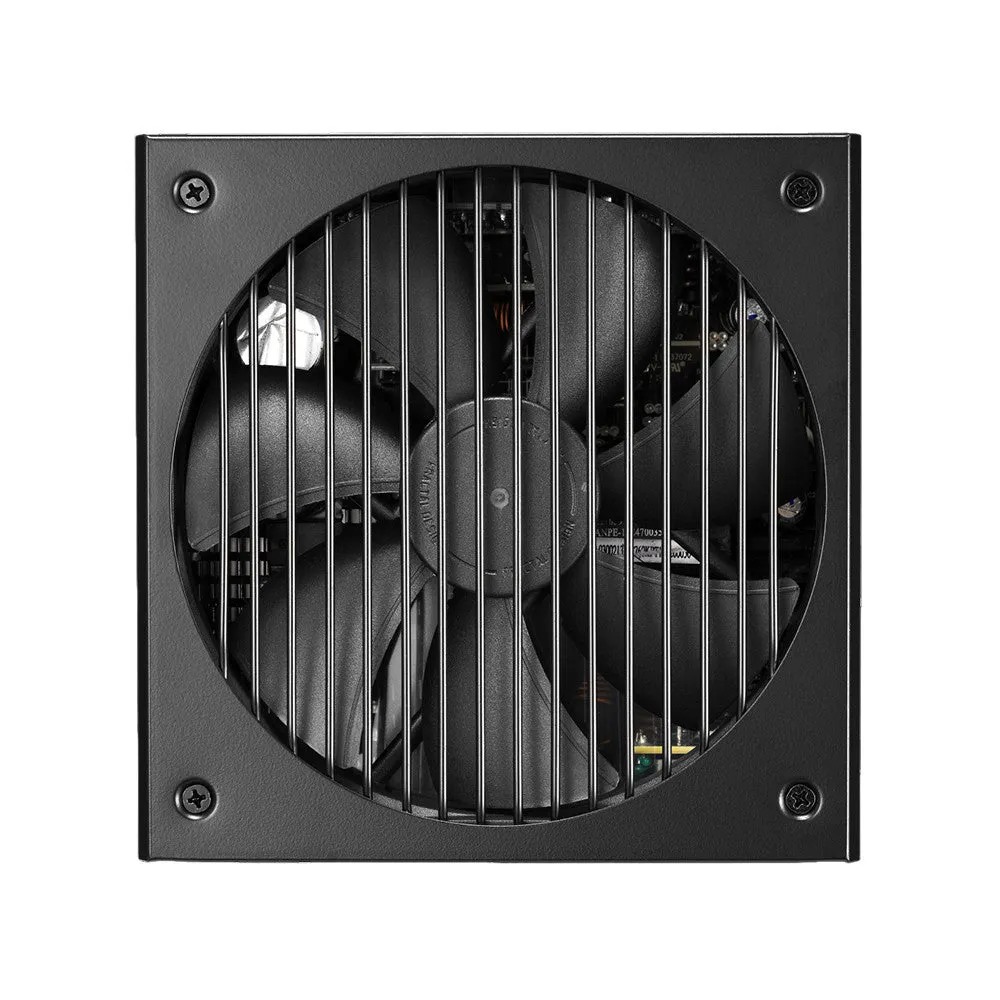

• Custom-tailored 140 mm fan with exceptionally low minimum speed
• 80 PLUS® Platinum Efficiency for optimized electrical performance

80 PLUS® Certification - Platinum
Modular cables - Fully modular

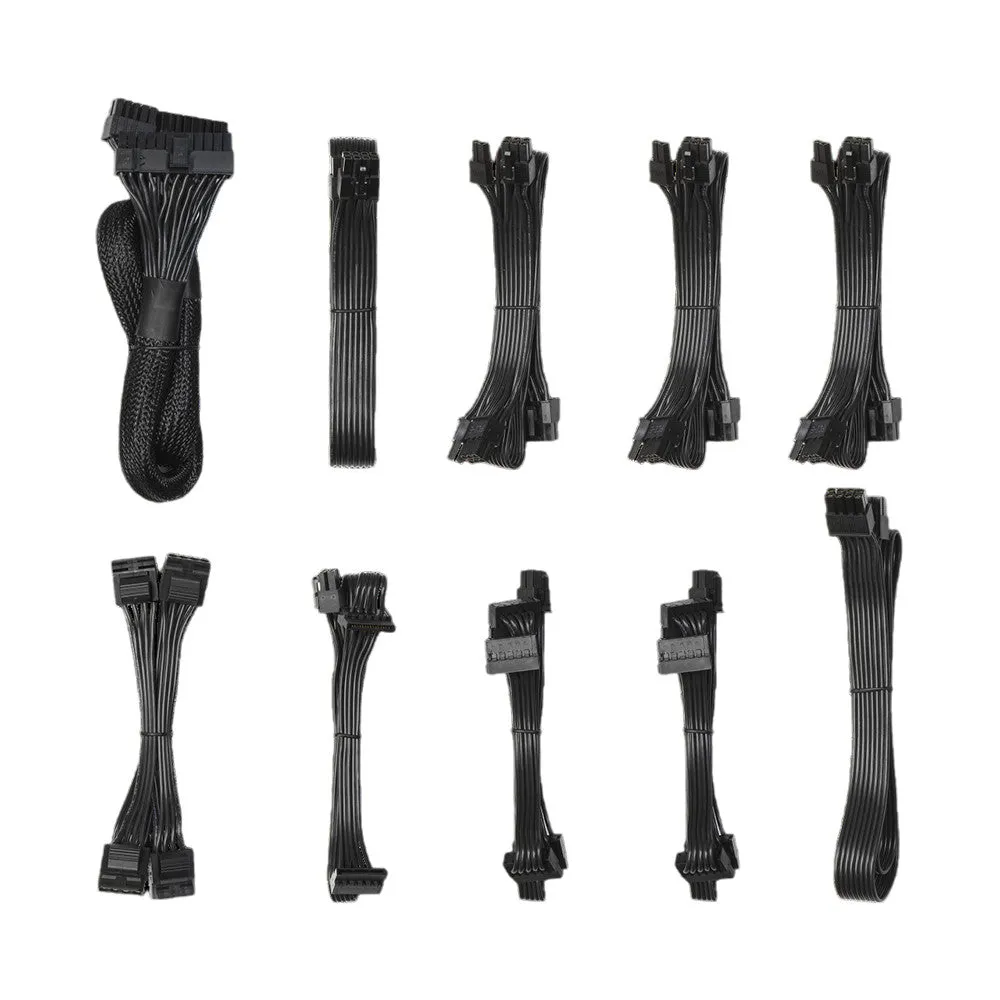

Cable type - Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire
Fan type - Customized 140 mm FDB bearing Fractal Design Dynamic Series fan
Maximum operating temperature at full load - 50° C
Semi-passive operation - Yes, user selectable (Zero RPM)
Sleep State Compliance - C6/C7
Warranty - 10 years

Life expectancy (MTBF) at max output load - 100,000 hours
Input voltage - 100-240V AC
Input frequency - 50-60 Hz
Input current - 10A/5A
Number of 12V rails - 1
PSU specification compliance - ATX12V 2.4 / EPS12V 2.92
Standby efficiency - ErP 2013 (<0.45W @230 VAC, 45 mA load on 5Vsb)
Unit measurements - 150 x 150 x 86 mm
Unit weight (unit only) - 1.665 kg
