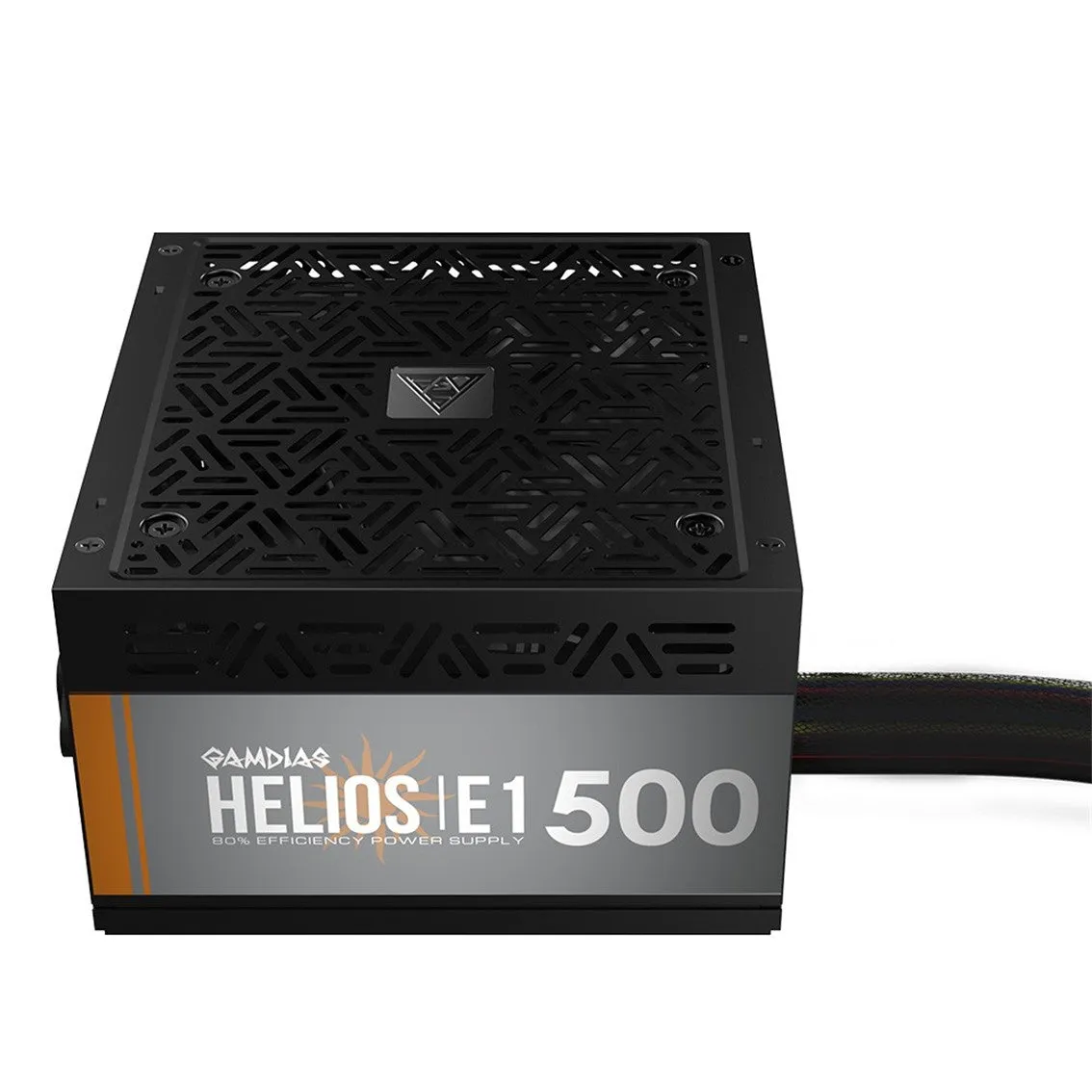

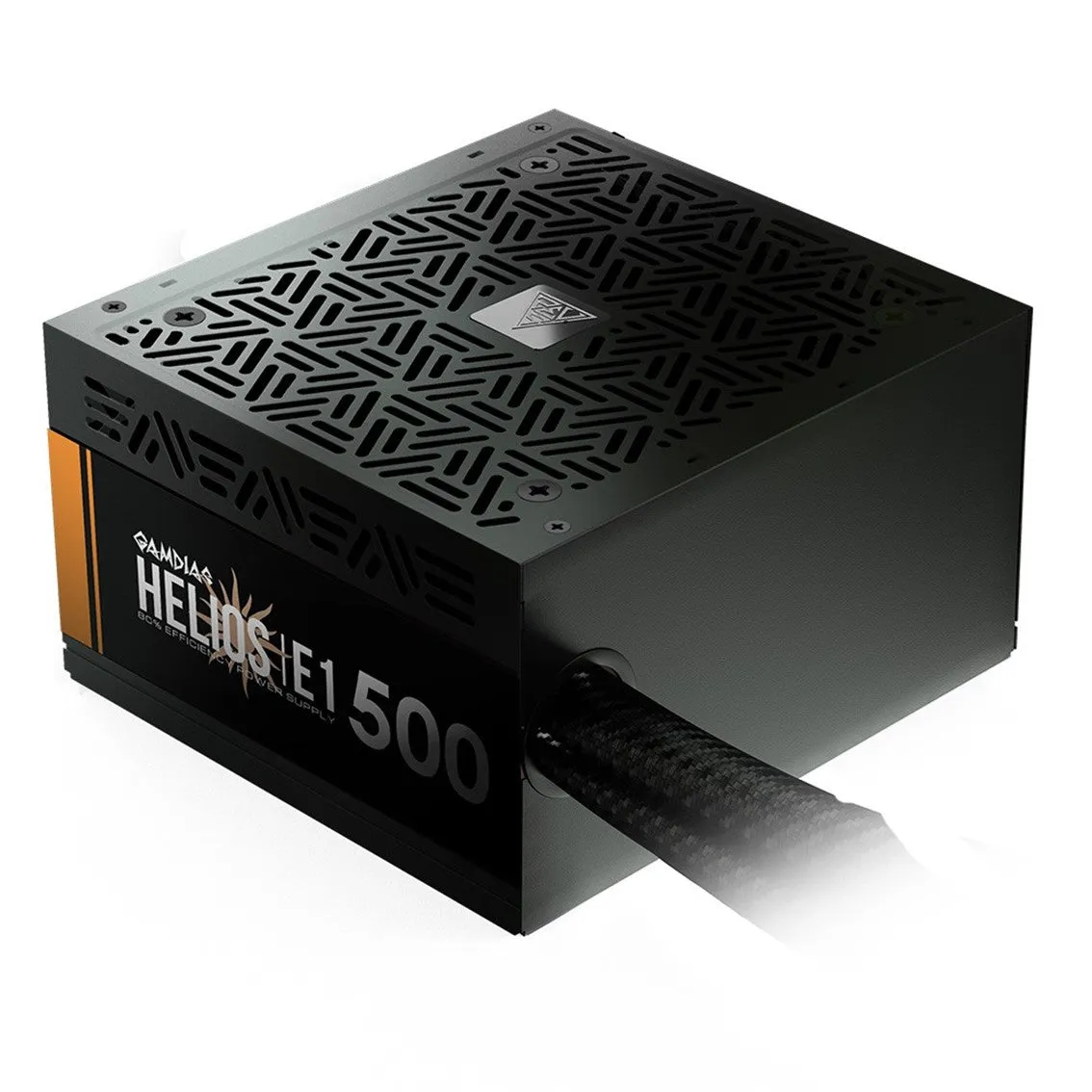

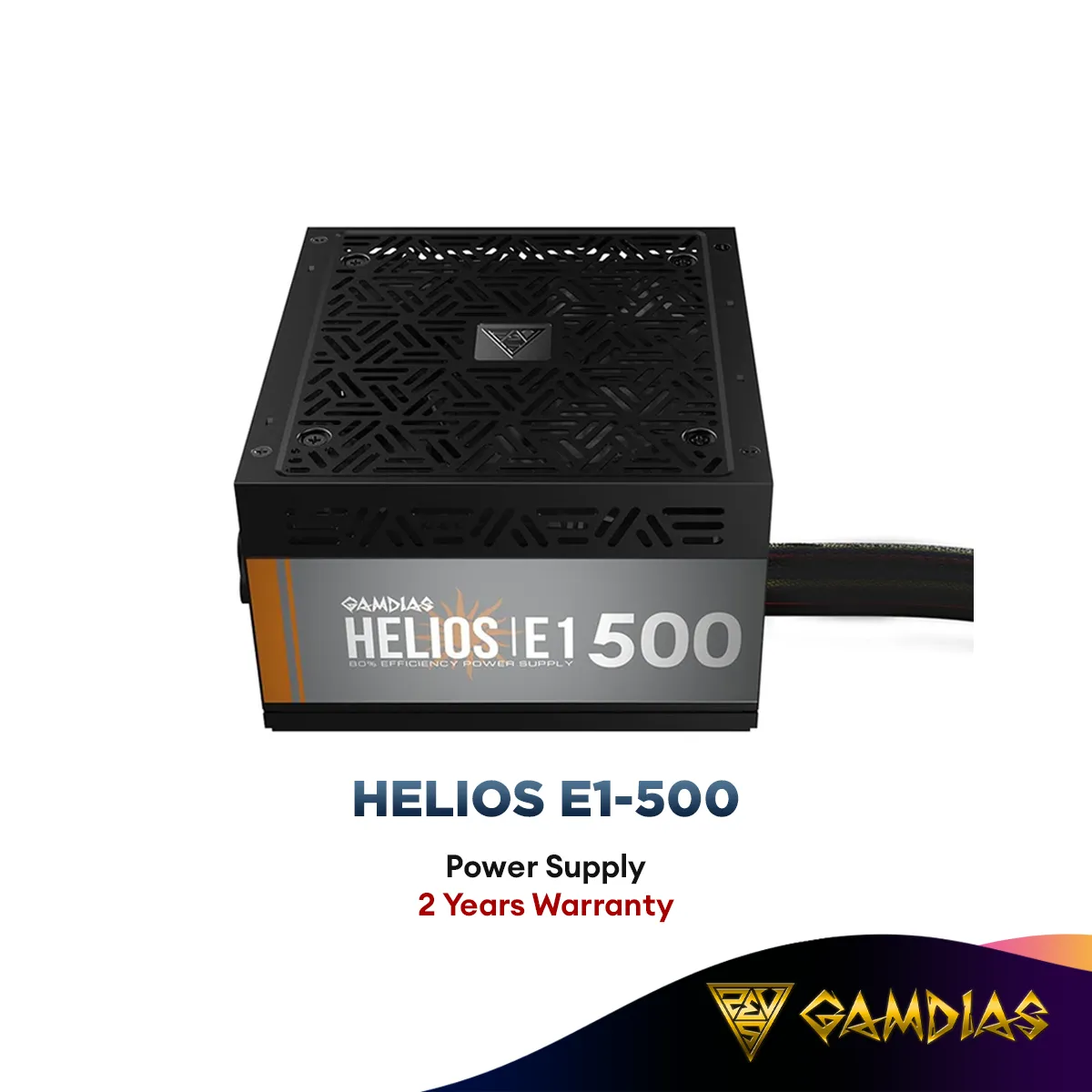

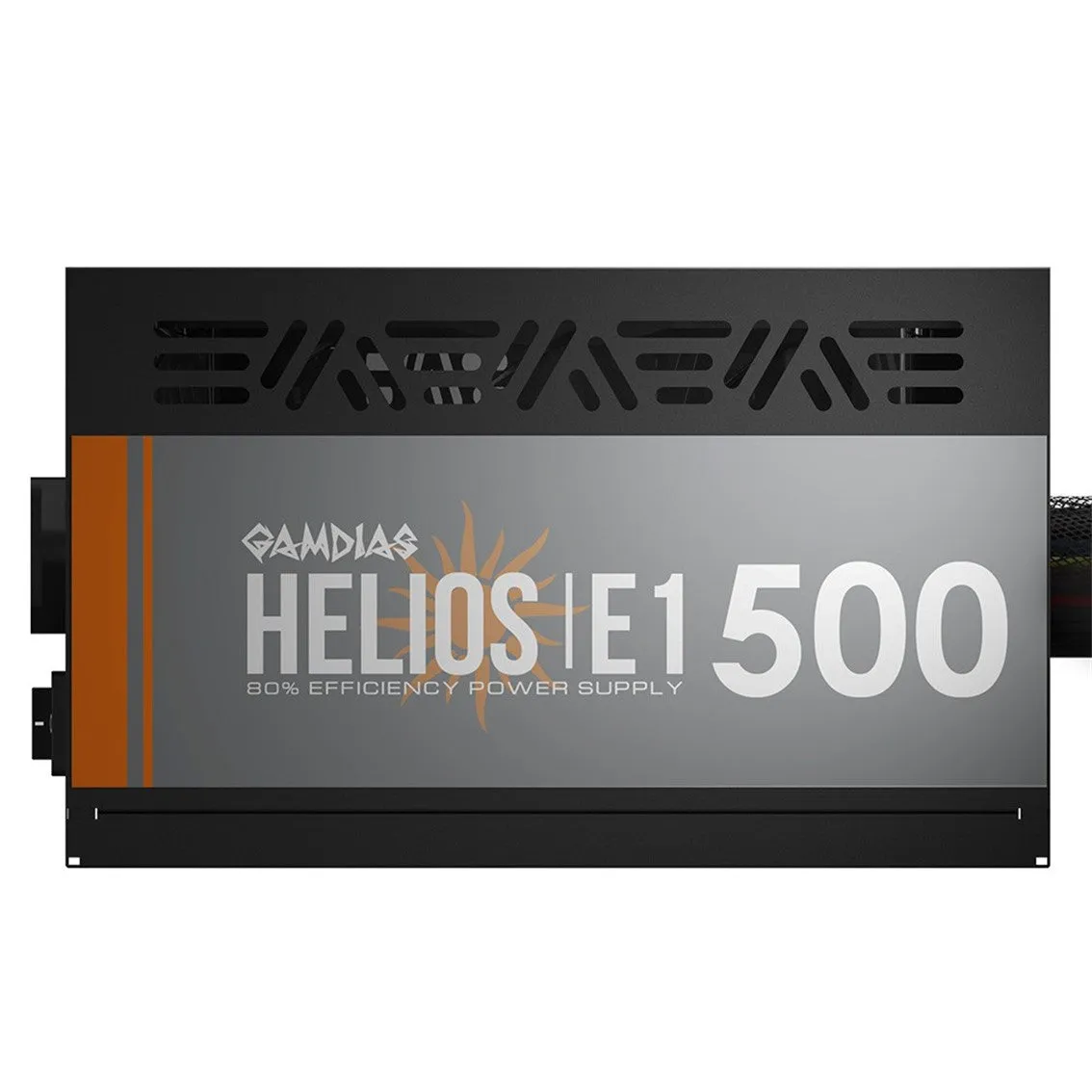

HELIOS E1-500

SMART AND DURABLE

Meets 80% Efficiency

620mm EPS Cable

Automatic Fan Speed Optimization

Stealth Black

Support C6/C7 Power States

The HELIOS E1-500W can deliver up to 80% efficiency reliably while automatically adjusting its fan speed according to temperature. The stealthy PSU provides durability and luxury while being exceptionally economically competent.

EXTRAORDINARY EFFICIENCY

HELIOS E1-500W can perfectly draw power at 80% efficiency while releasing minimal heat. With less heat generated, less noise arises.

SMART VENTILATION

The power supply unit supports automatic fan speed optimization which adjusts its fan speed according to the temperature and load.

SPECIFICATIONS

Model - HELIOS E1-500

POWER

Type - ATX12V v2.4

Efficiency - Meeting up to 80% efficiency

Dimension (L x W x H) - 140 x 150 x 86 mm

Support C6/C7 power state - Yes

AC Input - 100-130V;200-240V / 3.5A-7.5A / 47-63Hz

DC Output - 3.3V / 5V / 12V / -12V / 5Vsb

Max. Output Current - 15A / 15A / 32A / 0.3A / 2.5A

Max. Output Power - 100W / 384W / 3.6W / 12.5W

Total Power - 500W

Protection - OVP / UVP / OPP / SCP

Main Power - 1 (20 4 Pin)

CPU - 1 (4 4 Pin)

PCI-E - 2 (6 2 Pin)

SATA - 5 (5 Pin)

Molex - 2 (4 Pin)

Floppy - 1 (4 Pin)

Silent Mode - No

DC to DC - No
