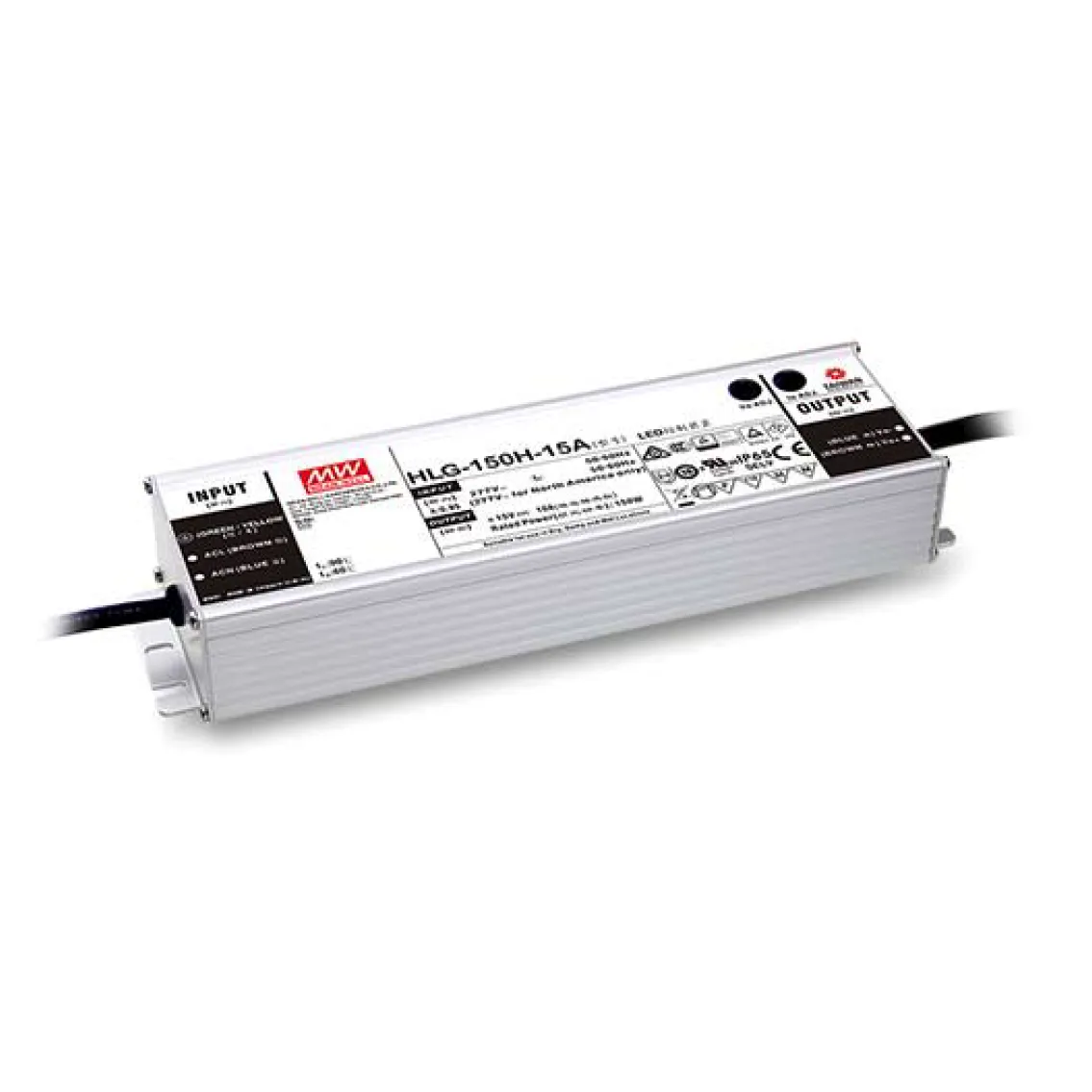

HLG Family of Power Supplies. The best LED Drivers.

Extremely reliable and robust LED power supply designed for use with all LEDs including Constant Current and Constant Voltage products. Perfect for on-camera and constant-on use with our FlexLED Tape and any 24V DC LED product. Class I safety ensures short-circuit, overload, over-voltage, over-current, and over-temperature protection. IP65 rated for outdoor use. Safe, powerful, and reliable are the cornerstones of our HLG line of power supplies from Mean Well. Amazing 7 year warranty.

Output 60 - 600W
Class I

Ships in 1 - 2 Business Days

SPECIFICATIONS - 24VDC PRODUCT

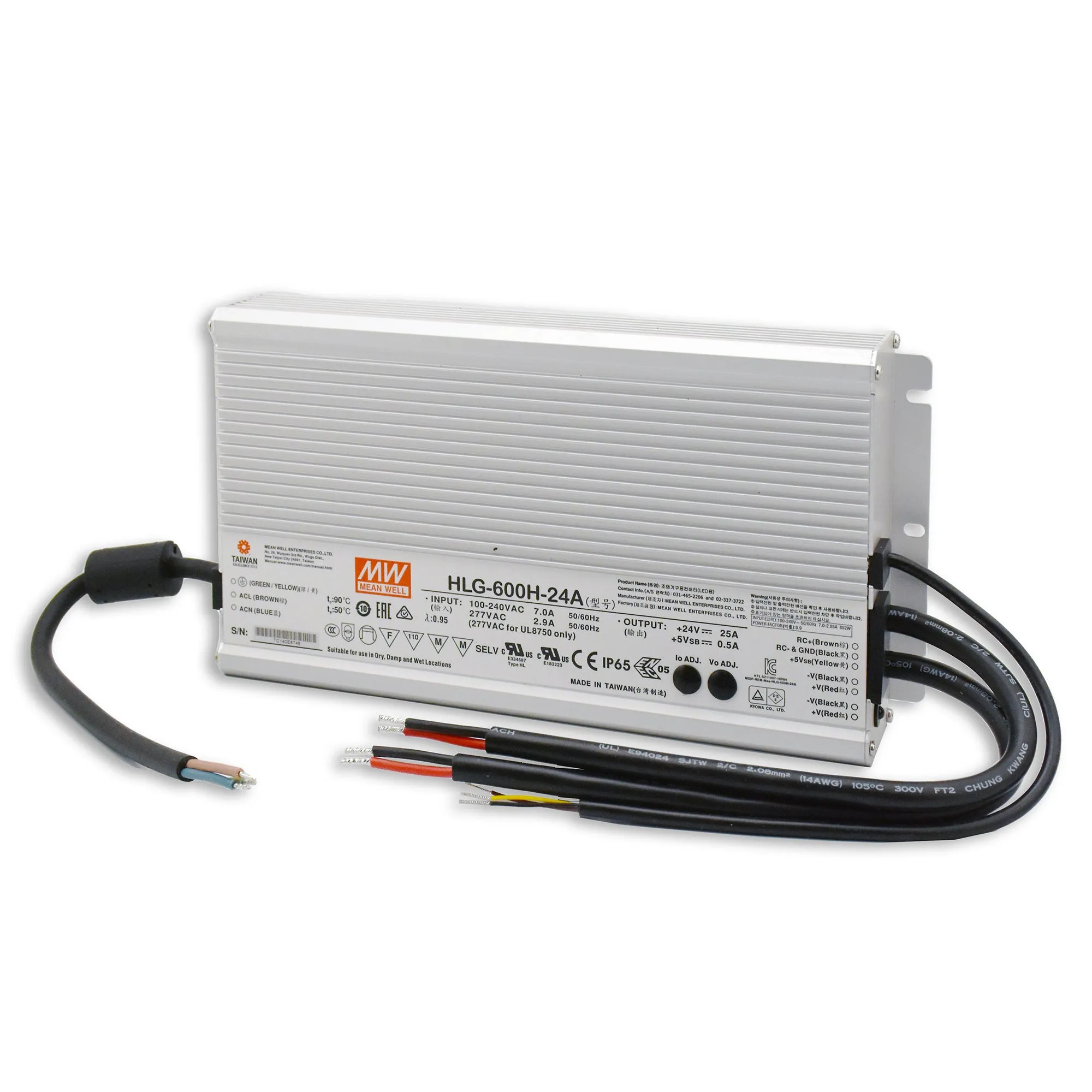

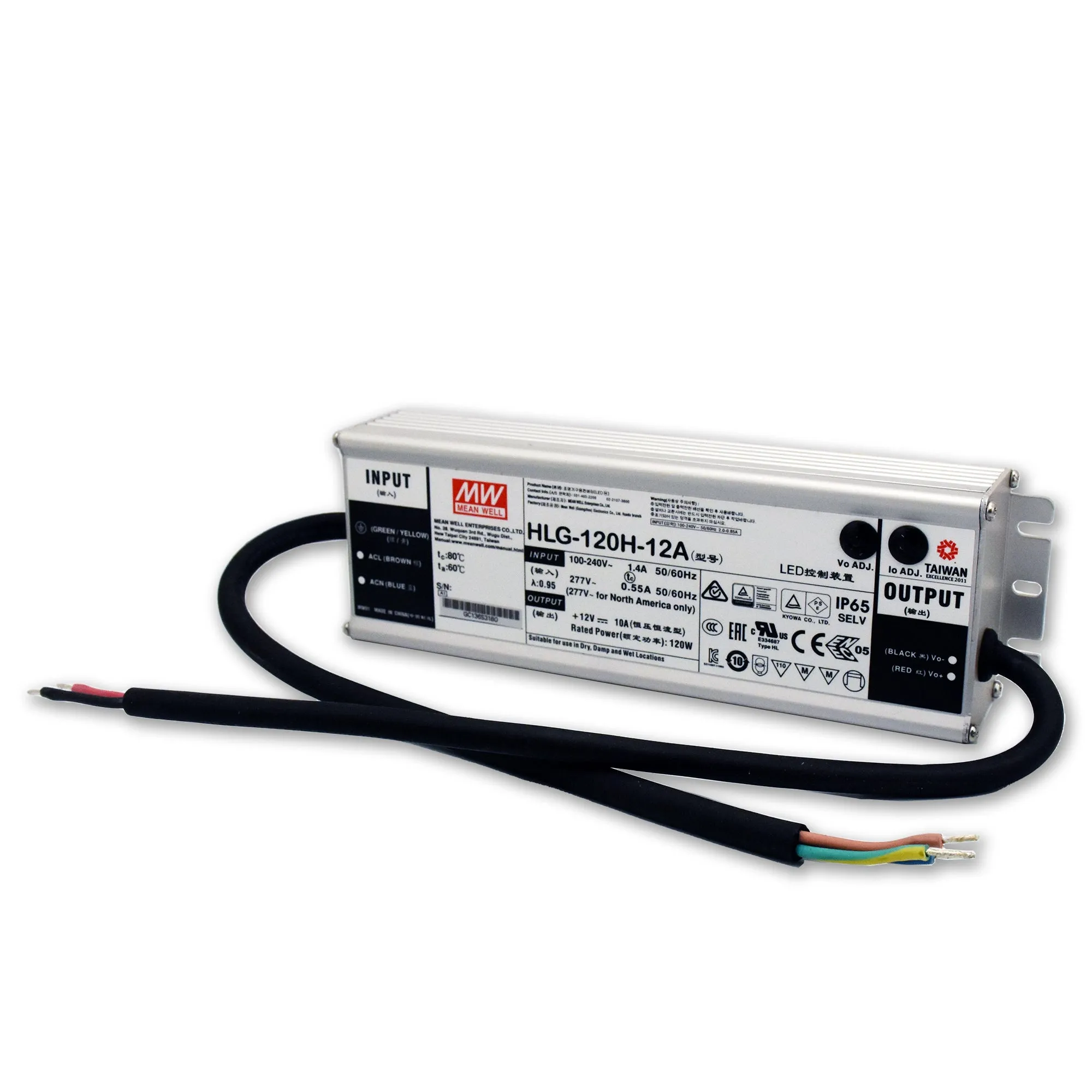

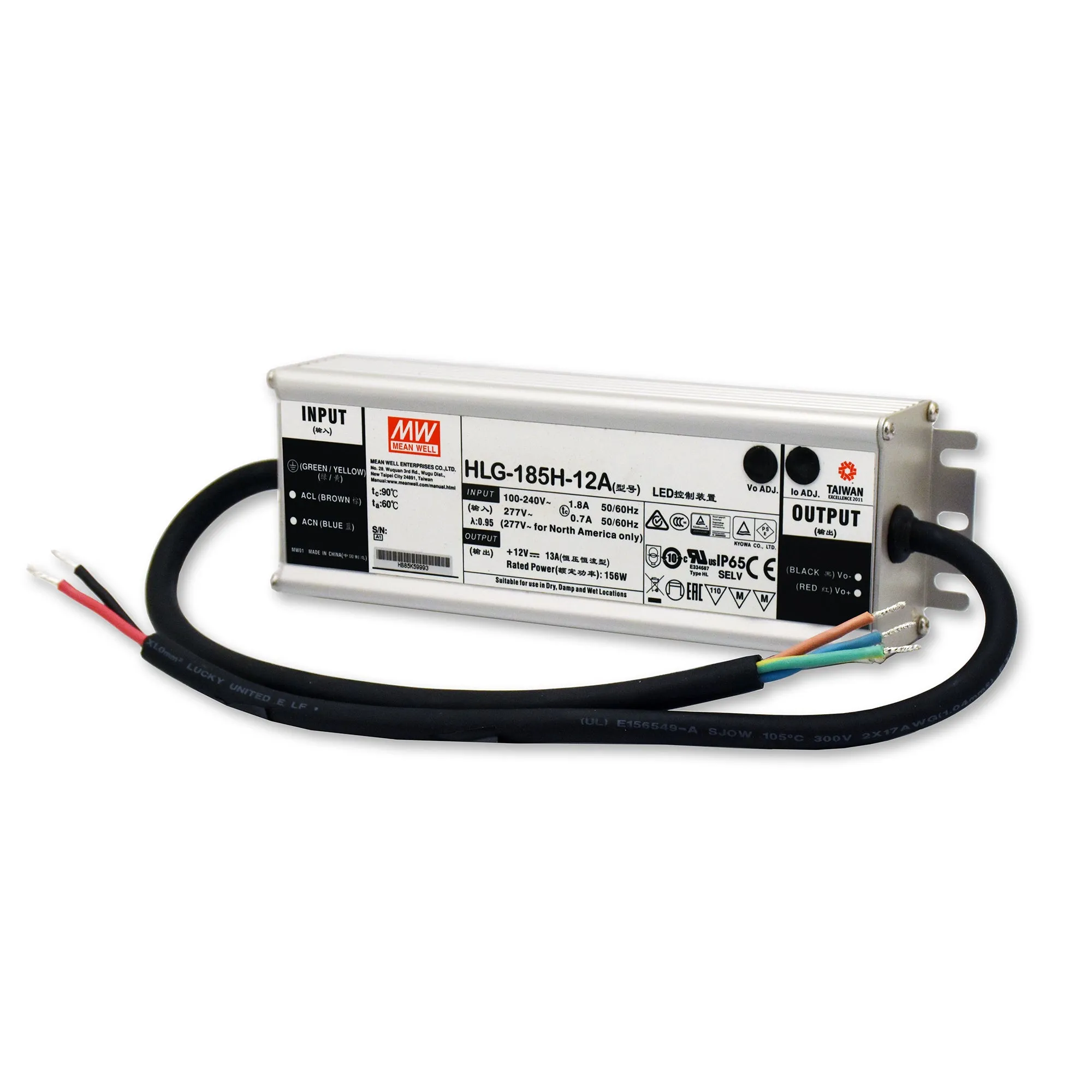

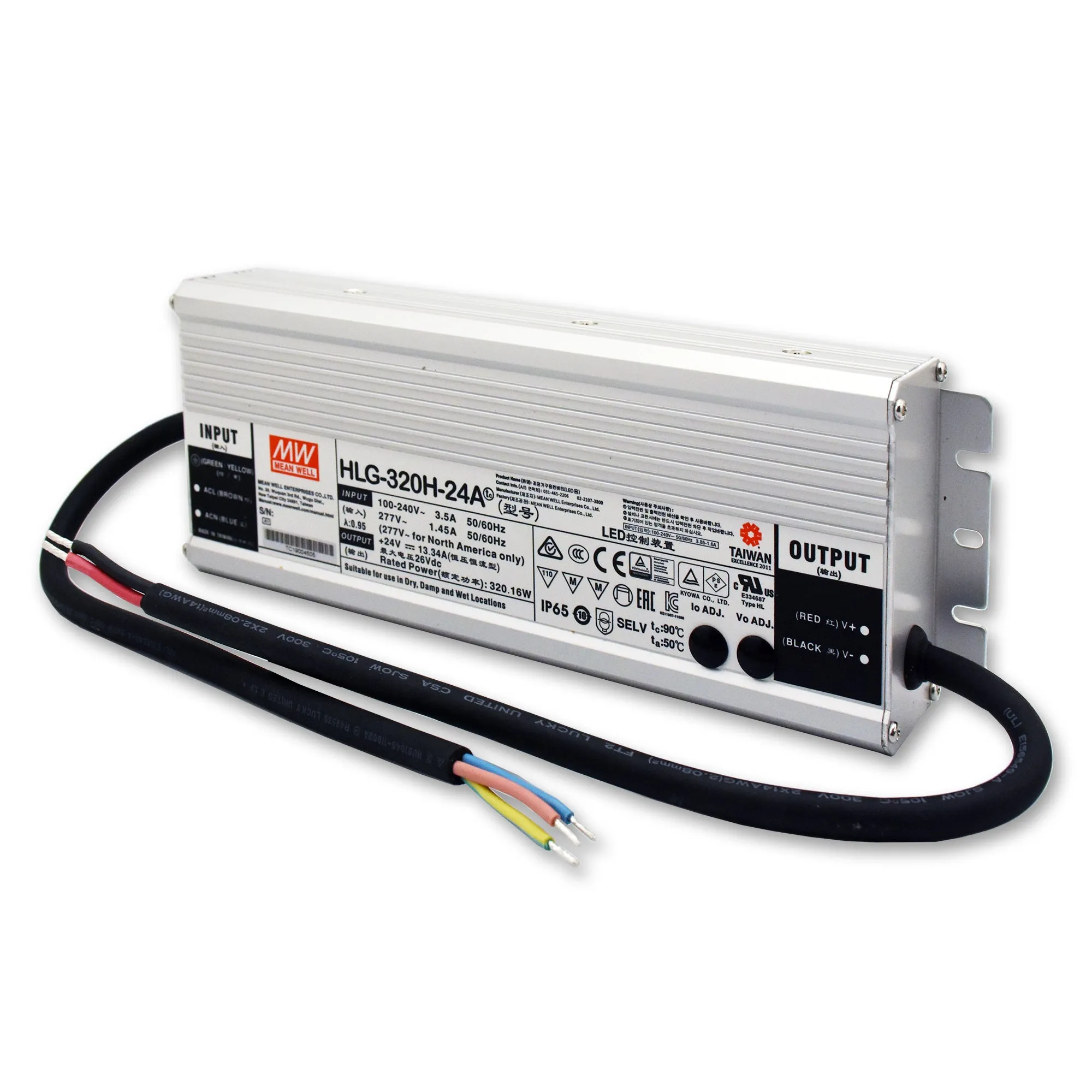

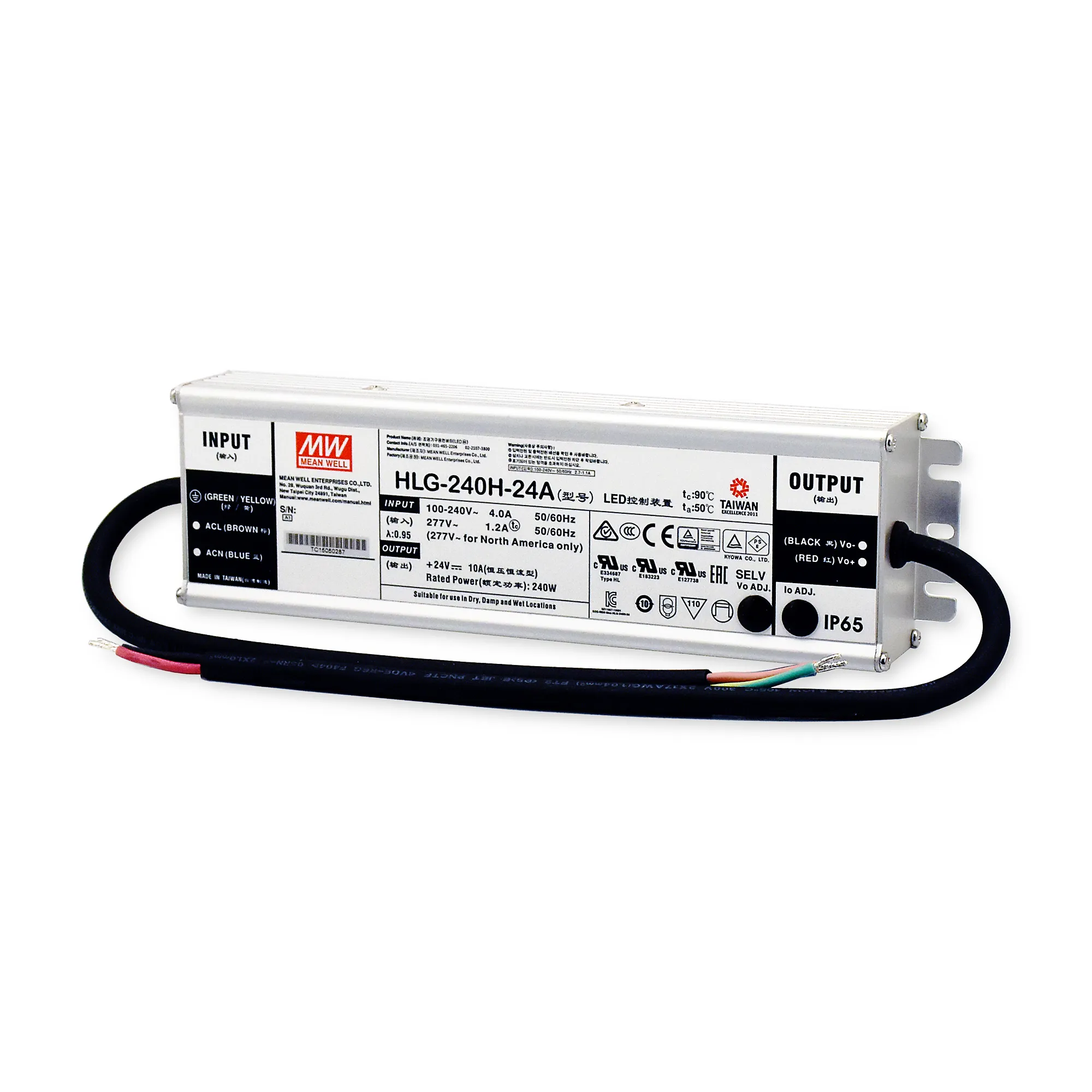

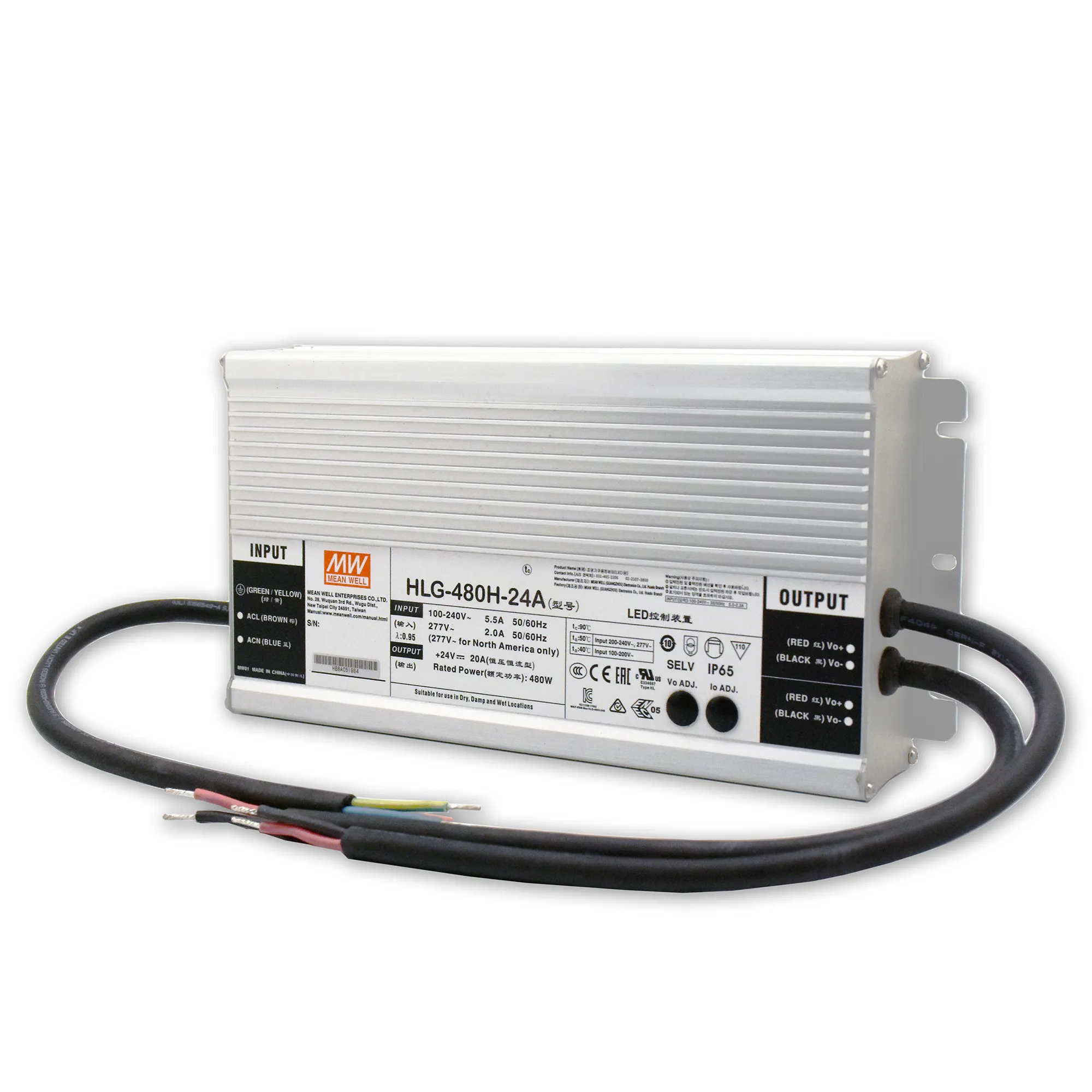

Model	:	HLG-120H-24A	HLG-150H-24A	HLG-185H-24A	HLG-240H-24A	HLG-320H-24A	HLG-480H-24A	HLG-600H-24A
Current (A)	:	5 A	6.25 A	7.8 A	10 A	13.34 A	20 A	25 A
Output Power (W)	:	120 W	150 W	185 W	240 W	320 W	480 W	600 W
Agency Approvals	:	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB	UL/CUL/CE/TUV/CB
Size (millimeters)	:	220 X 68 X 38.8	228 X 68 X 38.8	228 X 68 X 38.8	244 X 68 X 38.8	252 X 90 X 43.8	262 X 125 X 43.8	280 X 144 X 48.5
Ripple & Noise (mV p-p)	:	150mVp-p	150mVp-p	150mVp-p	150mVp-p	150mVp-p	200mVp-p	150mVp-p
Load Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Line Regulation ()	:	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	:	93%	93%	93.5%	92.5%	94%	94%	95%
Frequency Range	:	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz	47 ~ 63 Hz
Universal AC input	:	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC	90 ~ 305VAC 127 ~ 431VDC
Low leakage current	:	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">	<0.75ma 277vac="" td="">
Protections:	:	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp	short circuit, over voltage, overload, over current, over temp
AC Input	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Housing	:	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing	Fully enclosed aluminum housing
Ingress Protection Rating	:	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
Class	:	TYPE HL - Class I	TYPE HL - Class I	TYPE HL - Class I	TYPE HL - Class I	TYPE HL - Class I	TYPE HL - Class I	TYPE HL - Class I
Indicator	:	None	None	None	None	None	None	Yes
Voltage Adjustment Range	:	22 ~ 27V	22 ~ 27V	22 ~ 27V	22.4 - 25.6V	21 ~ 26V	20.4 ~ 25.2V	20.4 ~ 25.2V
Output Connector Type	:	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned	Bare Wire - Stripped & Tinned
Current Adjustment Range	:	2.5 ~ 5A	3.8 ~ 6.3A	3.9 ~ 7.8A	5 ~ 10A	6.67 ~ 13.34A	10 ~ 20A	12.5 ~ 25A
Output Polarity	:	Refer to Specification Sheet	Refer to Specification Sheet	Refer to Specification Sheet	Refer to Specification Sheet	Refer to Specification Sheet	Refer to Specification Sheet	Refer to Specification Sheet
Input Connector	:	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)	Bare Wire OR Hospital Grade Edison Plug (HBL8115V)
Product Type	:	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply	AC to DC Power Supply
MFR Product Family	:	HLG	HLG	HLG	HLG	HLG	HLG	HLG
Operating Temperature	:	-40C to 80C	-40C to 90C	-40C to 90C	-40C to 90C	-40C to 90C	-40C to 90C	-40C to 90C
Power Supply Color	:	Silver	Silver	Silver	Silver	Silver	Silver	Silver
Wiring Color Codes Output	:	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU	Refer to Label on PSU
