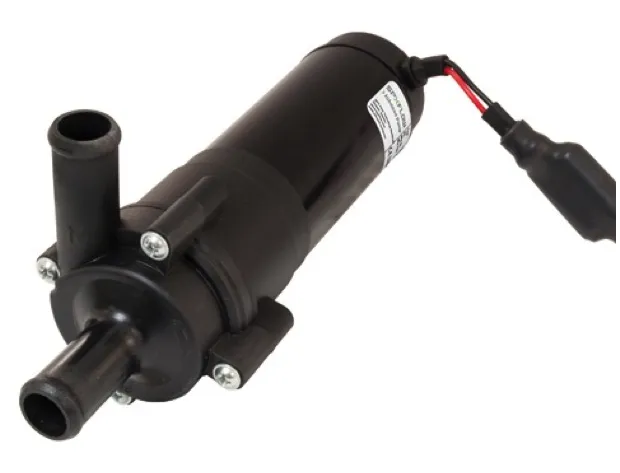

A line of compact centrifugal pumps which combine high flow rates with very low electric current consumption, making them ideally suited for circulating fresh water in live fish tanks, heating and cooling systems. But not saltwater.

Key Features

• Withstand’s dry running up to 30 mins
• 5000 hr service life rated
• Seal-less design makes 100% leak proof

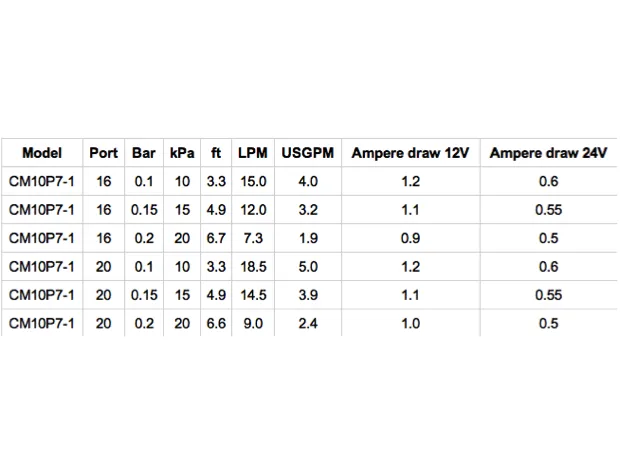

Pressure & Capacity Data

• See attached image ( Based on water at 20 C/68 F )

Dimensions & Weights

• Length: 177mm
• Width: 68mm
• Height: 85mm
• Weight: 0.53kg

Techncial Specifications

• Pump Body: PPA thermoplastic
• Impeller: PPS thermoplastic
• O-ring: EPDM
• Shaft: Stainless Steel
• Magnet housing: PSU
• Liquid temp.: Min -40°C, Max 100°C
• Motor: 12/24V DC enclosed (as per IP67) permanent magnet, ball bearing mounted motor, designed for continuous operation*
• CE marked according to the following standards
• EN55014: 1993/Radio disturbance
• ISO8846: Small Craft - Electrical devices -protection against ignition of surrounding flammable gases
• ISO10133: Small Craft - Electrical systems - extra low voltage DC installations
• 72/245/EEG, 95/54/EG Electromagnetic compatibility

Models

• Circulation Pump 16mm Port 12v
• Circulation Pump 16mm Port 24v
• Circulation Pump 20mm Port 12v
• Circulation Pump 20mm Port 24v
