Specifications:

• Product Number: 306-7ZP7C11-CE0
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (fully modular)

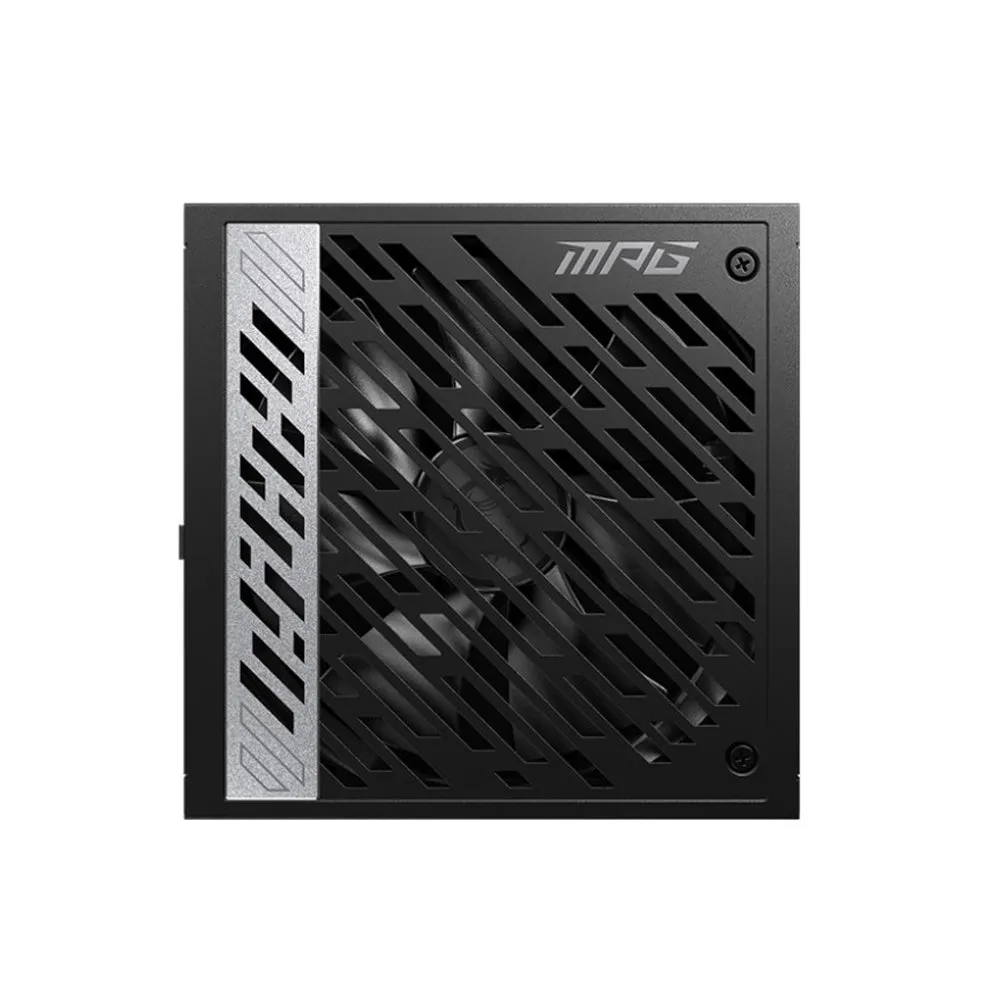

• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 150 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Watt: 1000W
• Power Excursion: 2000W (*up to 200% of the PSU's rated power for
• 100μs)
• Input Frequency Range: 50~60 Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP

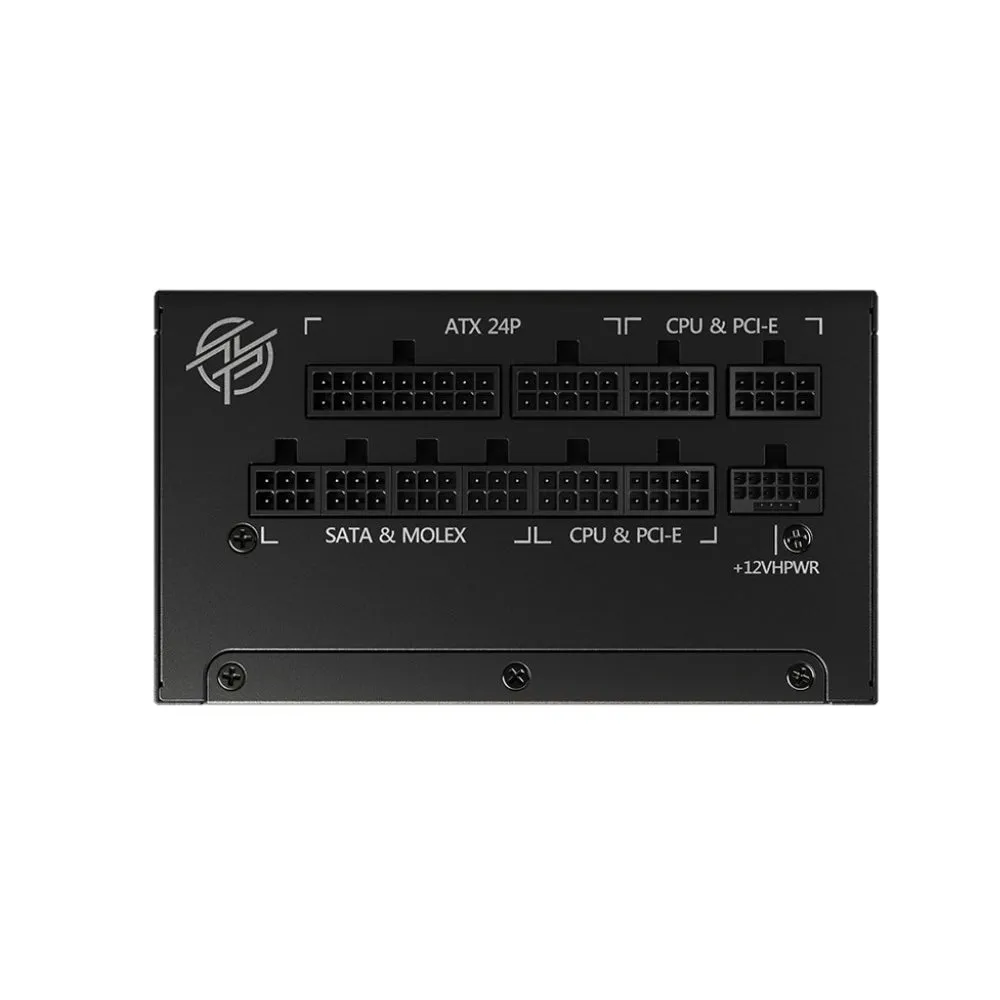

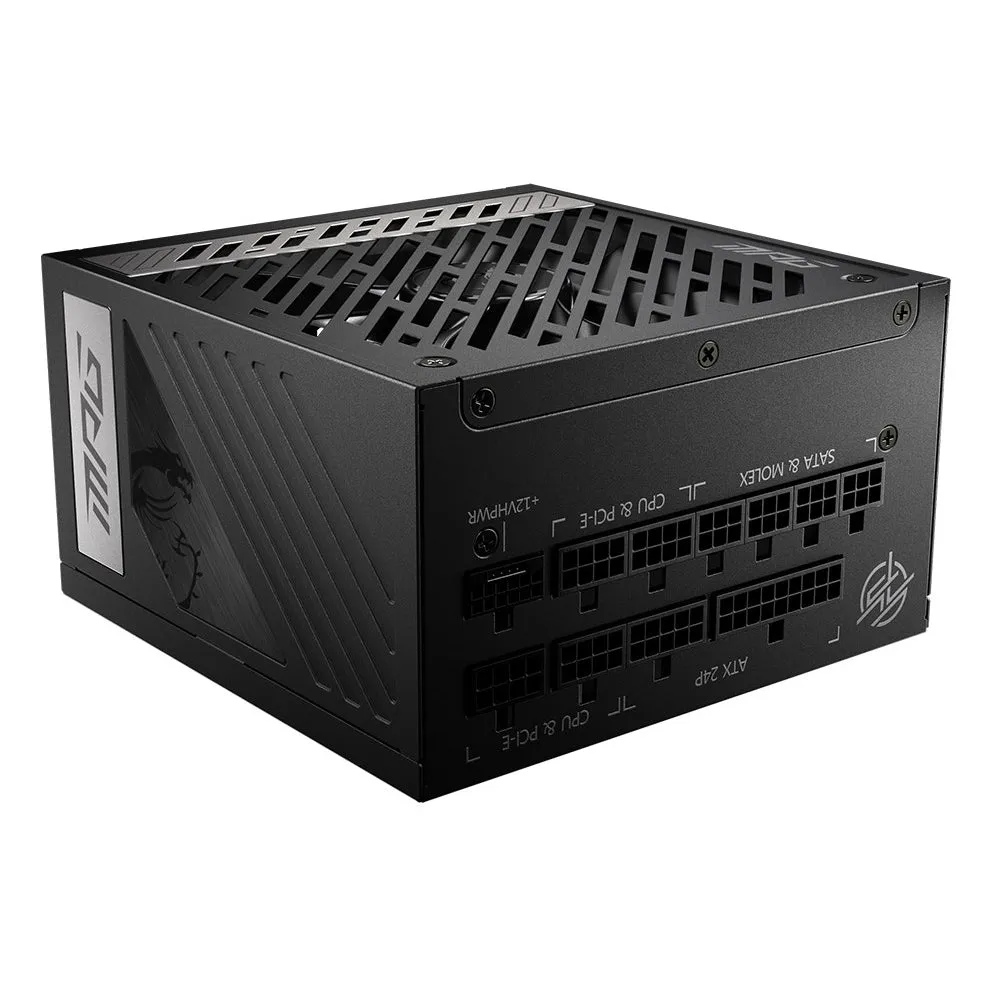

• ATX (24 pin): 1
• EPS (4 4 pin): 2
• PCI-E 5.0 (16 pin): 1 (600W)
• PCI-E (6 2 pin): 6
• SATA (15 pin): 12
• MOLEX (4 pin): 4
• FDD (4 pin): 1
