| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | QUINT-PS/1AC/24DC/ 5 |
| Approvals | UL Listed ; cUL Listed ; cULus Listed ; CB ; CSA ; UL Recognized ; UL Listed ; cUL Recognized ; LR ; BV ; NK ; RINA ; SEMI F47 ; ABS ; IECEE CB Scheme ; Bauartgepruft ; EAC ; DeviceNet |
| Configuration | Enclosed |
| Input Voltage | 100 VAC ; 110 VAC ; 115 VAC ; 120 VAC ; 127 VAC ; 190 VAC ; 200 VAC ; 220 VAC ; 230 VAC ; 240 VAC |

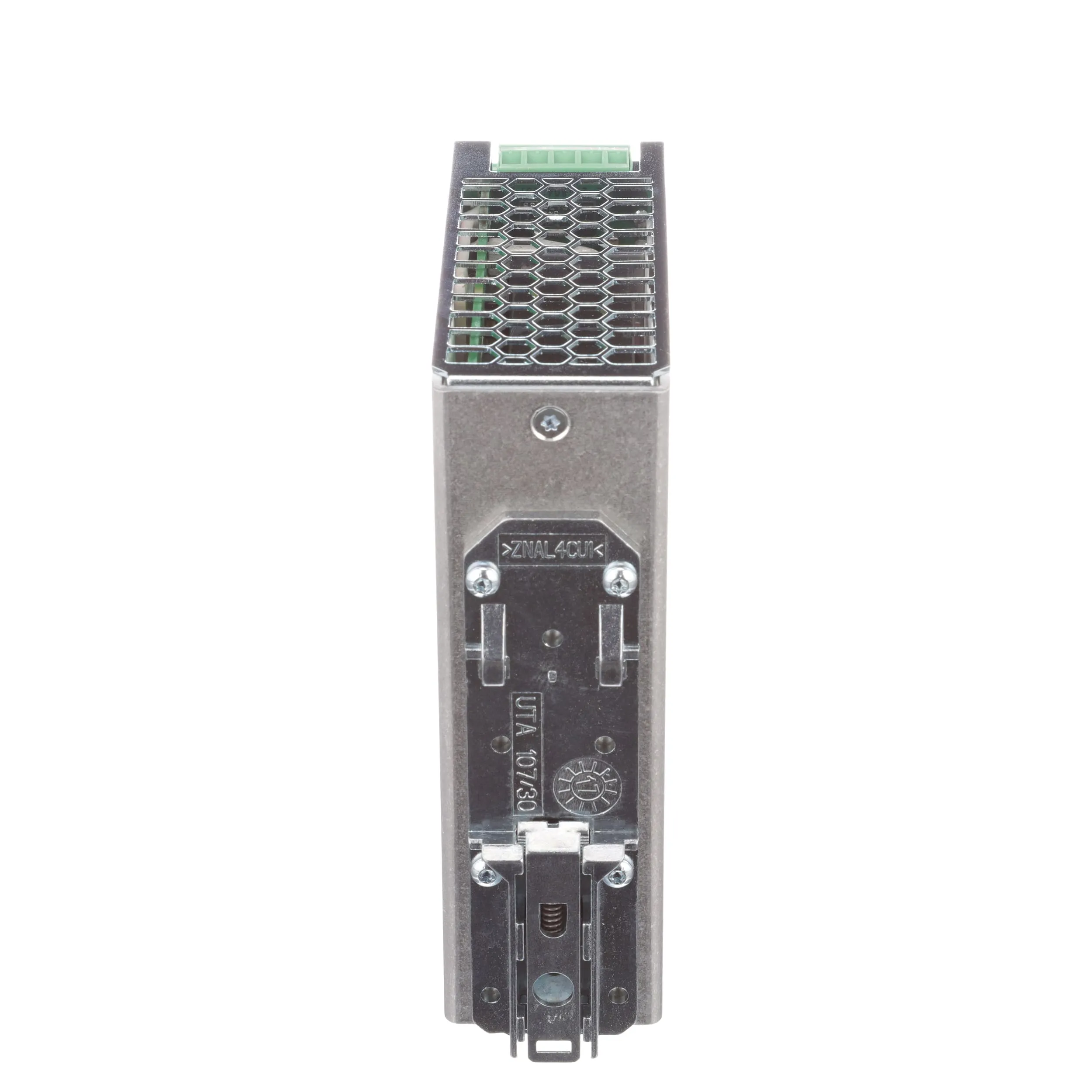

| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | PFC |
| Output Current | 5 A |
| Output Power | 120 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Product Header | Primary Switched Mode Power Supply |
| Series | |
| Special Features | DC OK Indicator ; DC OK Signal ; Parallelable |
| Type | Industrial |
| UPC Code | 4046356113786 |
| Voltage, Input Range | 85-264 VAC |
Overview

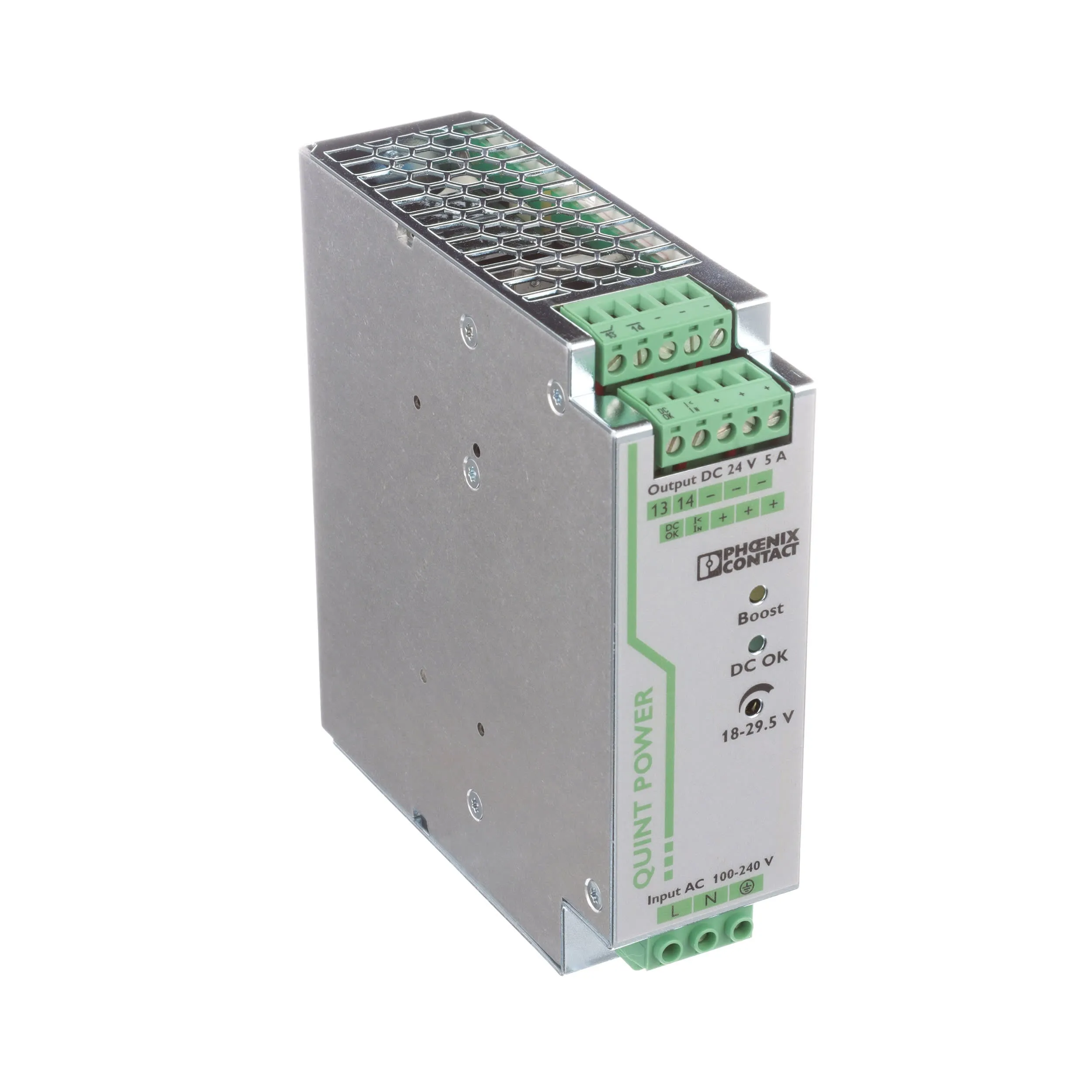

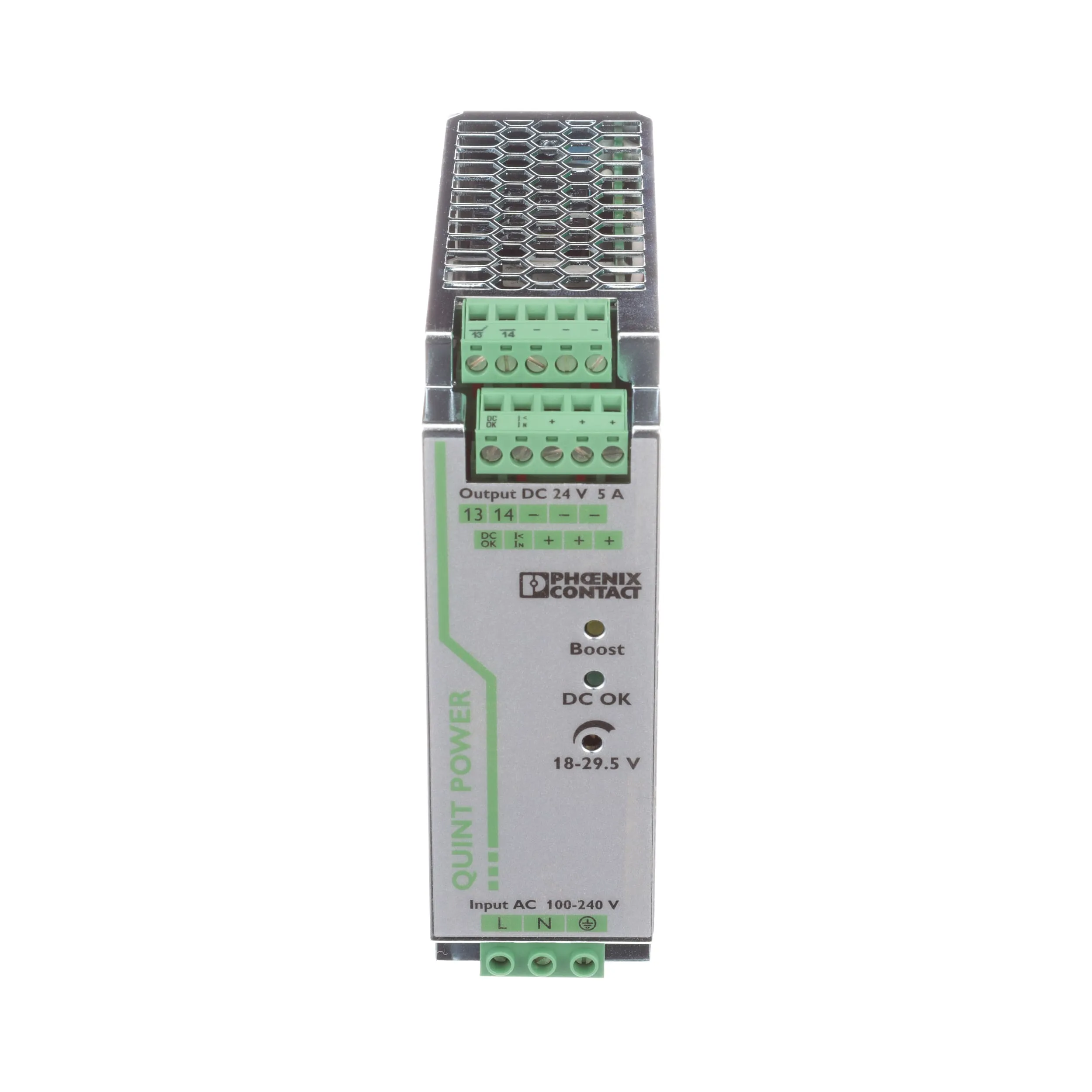

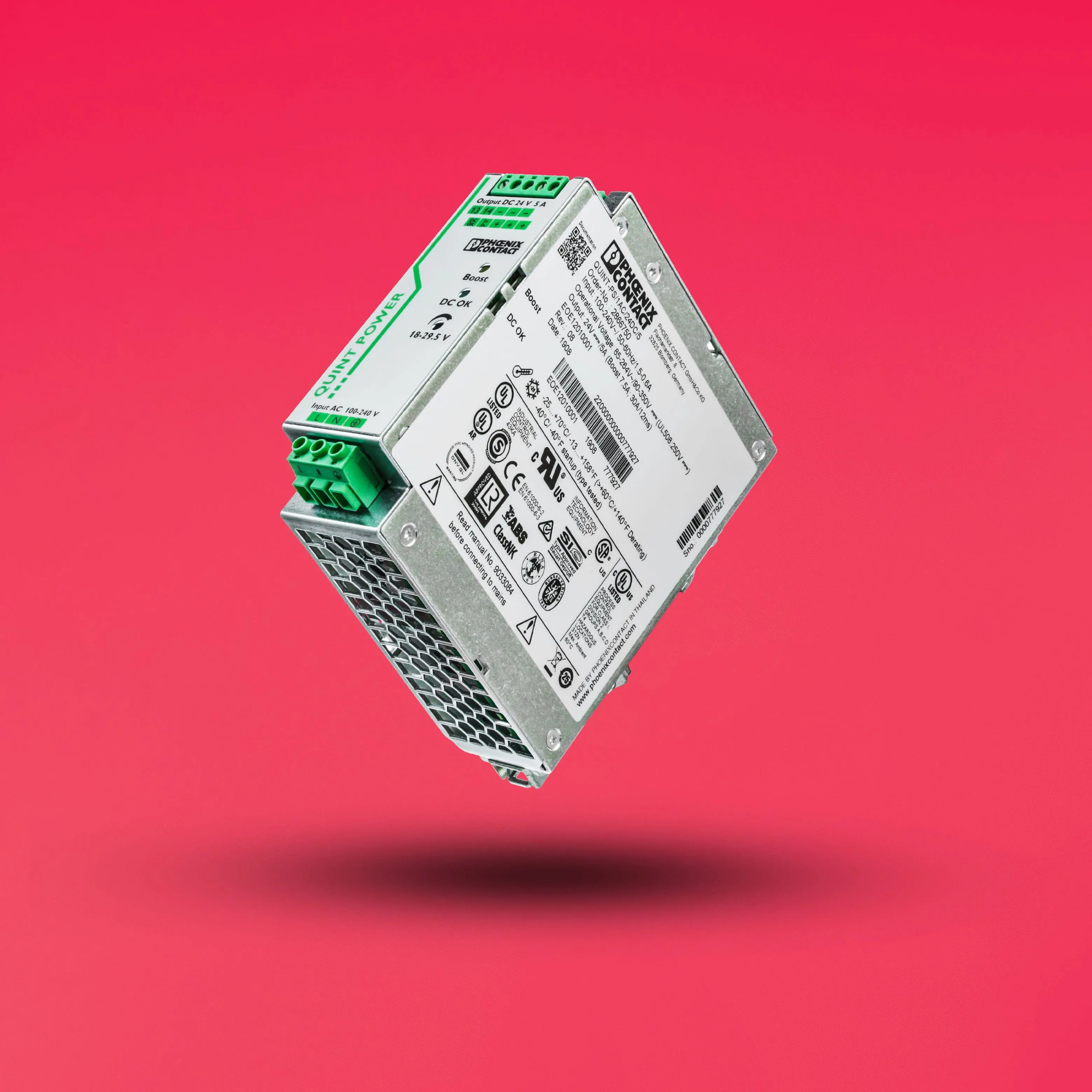

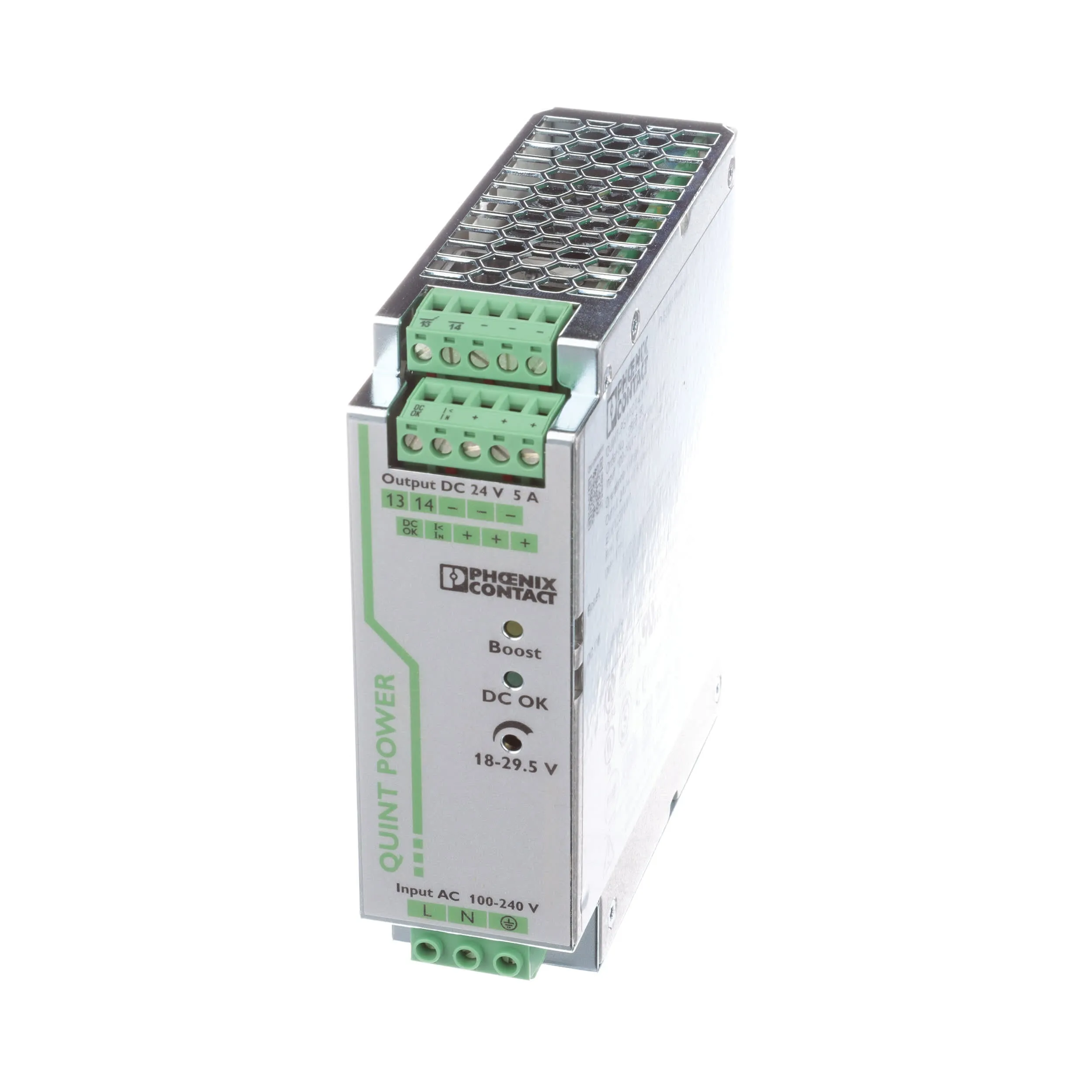

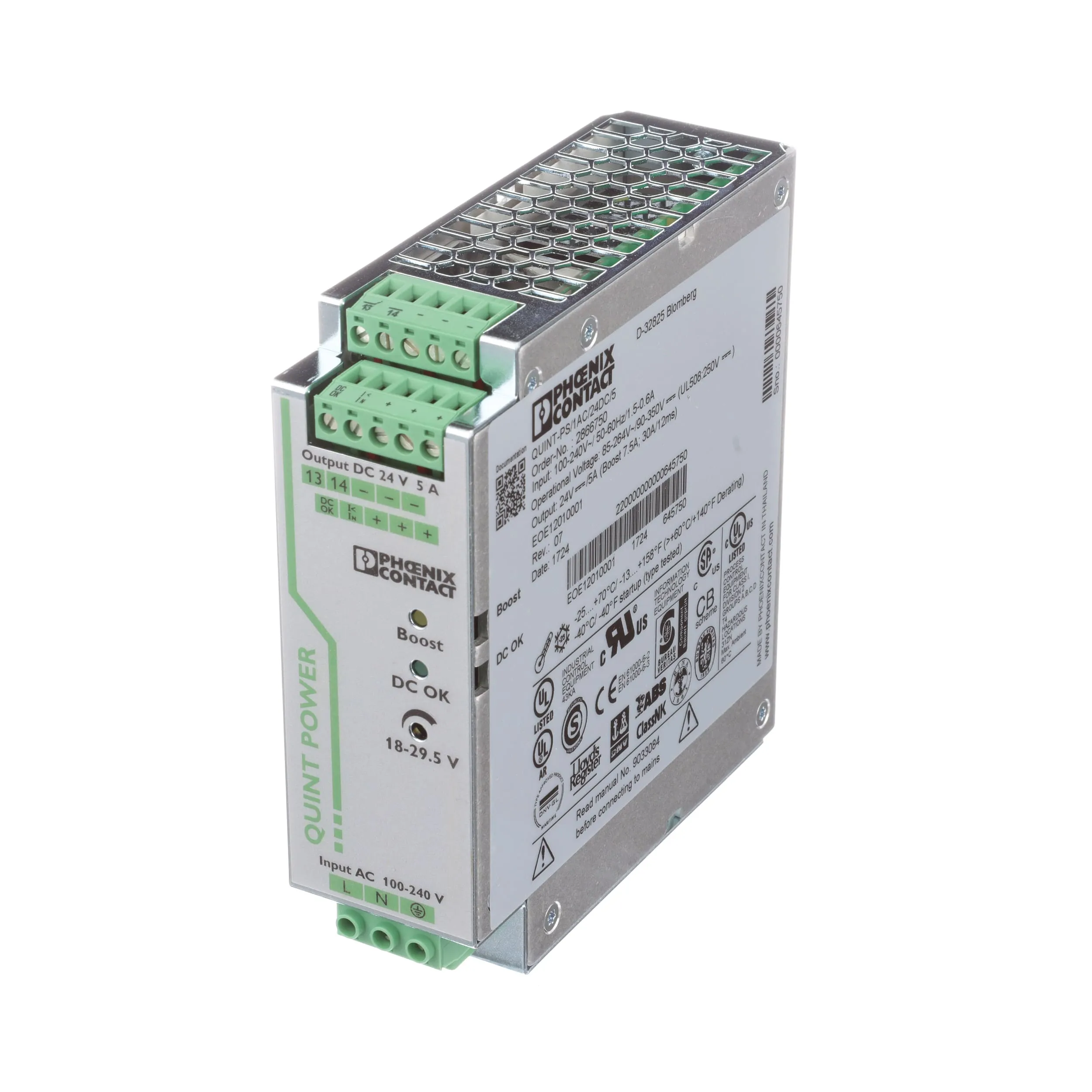

Phoenix Contact QUINT POWER Series — Single-Phase Primary-Switched Power Supply Unit with Max Functionality:
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is ensured thanks to the preventive function monitoring, as it reports critical operating states before errors occur. Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5VDC to 56VDC are covered.
These compact PSUs of the QUINT POWER generation maximize the availability of your system. With the SFB technology (Selective Fuse Breaking Technology), six times the nominal current for 12ms, even the standard power circuit breakers can now also be triggered reliably and quickly. Faulty current paths are switched off selectively, the fault is located and important system parts continue to operate. Comprehensive diagnostics are provided through constant monitoring of output voltage and current. This preventive function monitoring visualizes critical operating modes and reports them to the control unit before an error can occur.
Features:
