This power supply replaces the Sega Saturn's original power supply, and is an easy solution for a failing power board.

FEATURES:

• Compatible with all Saturn models.
• Reduces heat of original power supply in the console.
• Extends overall life of console.
• Frees up space for other mods as needed.
• Voltage adjustment switch.
• Solderless.
• 12V 3 amp power supply (See notes)
• DC barrel jack is 5.5mm OD, 2.5mm ID.
• Includes USA version AC Adaptor. For EU,UK, AU, etc. you will need a plug adapter in order to use.

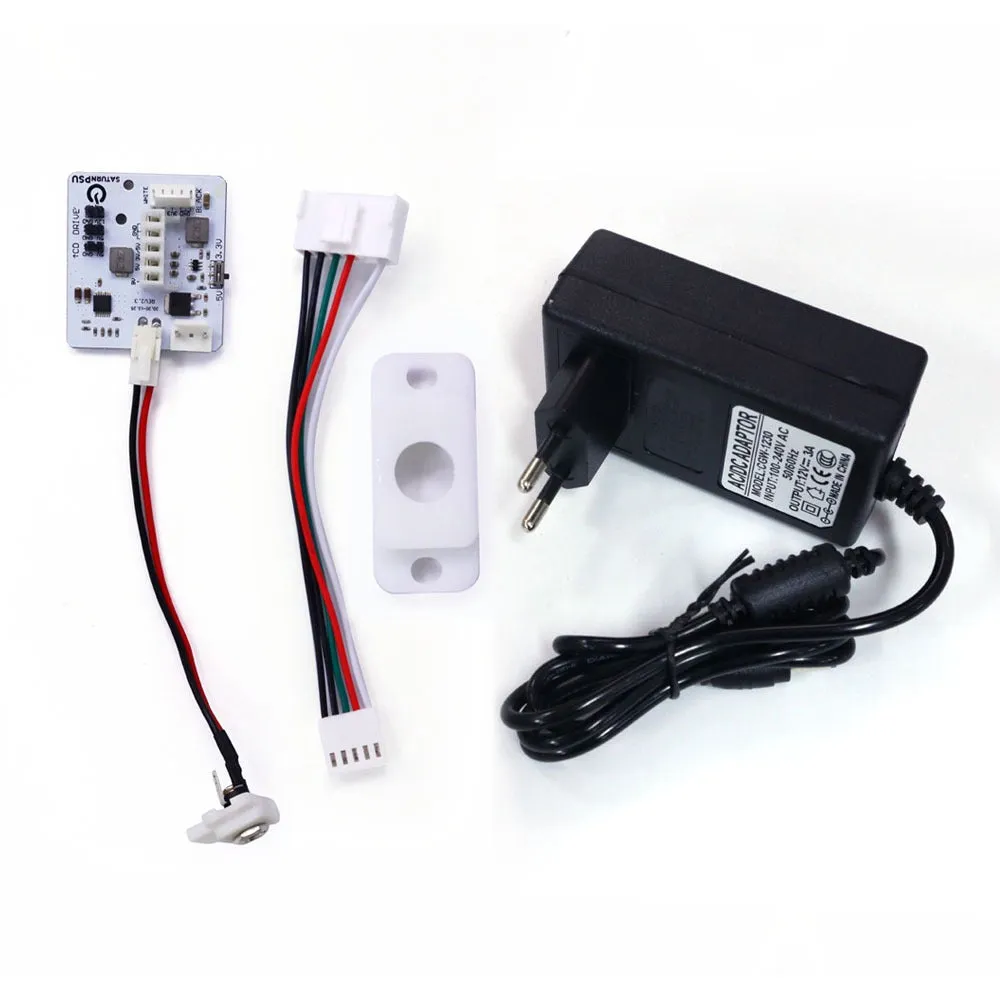

INCLUDED:

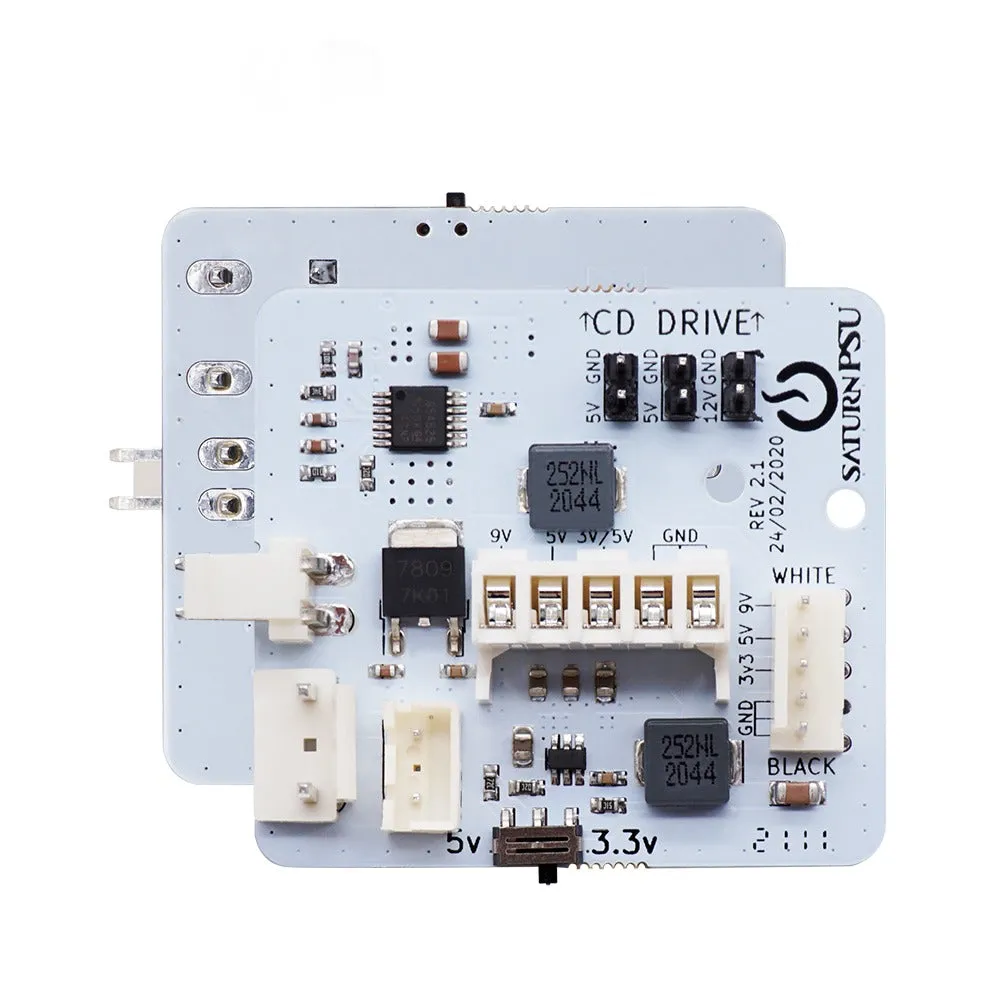

• 1x SaturnPSU PCB
• 1x Connector cable
• 1x 2x Installation cables

DOCUMENTATION:

NOTES:

• If you experience noise on your screen, we suggest using your original power supply or purchasing another (with a transformer-based power supply) as the one included with this kit can cause the issue. Specifications: Input - 110~240V AC 50/60HZ, Output - DC 12V 3A, overload protection, short circuit protection, over voltage protection, efficiency - ≥80%, DC barrel jack is 5.5mm OD, 2.5mm ID, positive center pin/negative outside.
