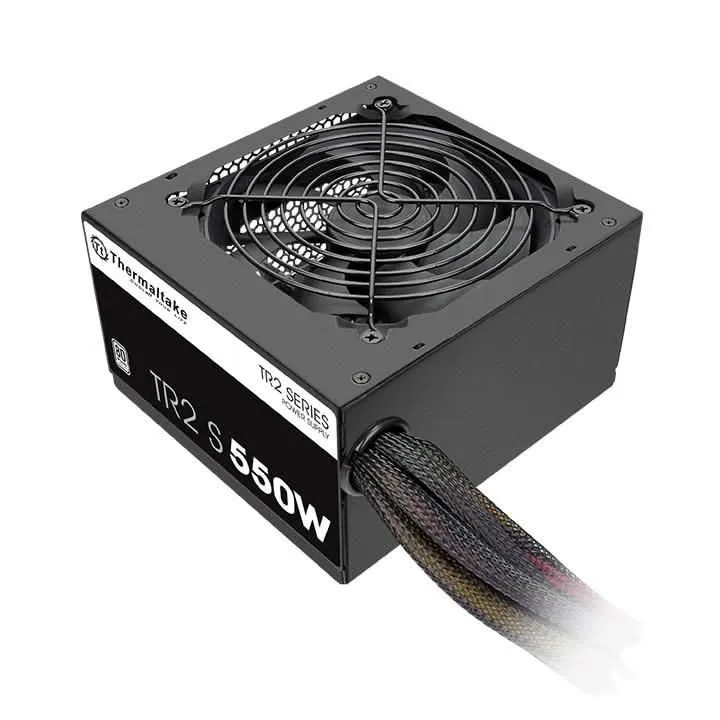

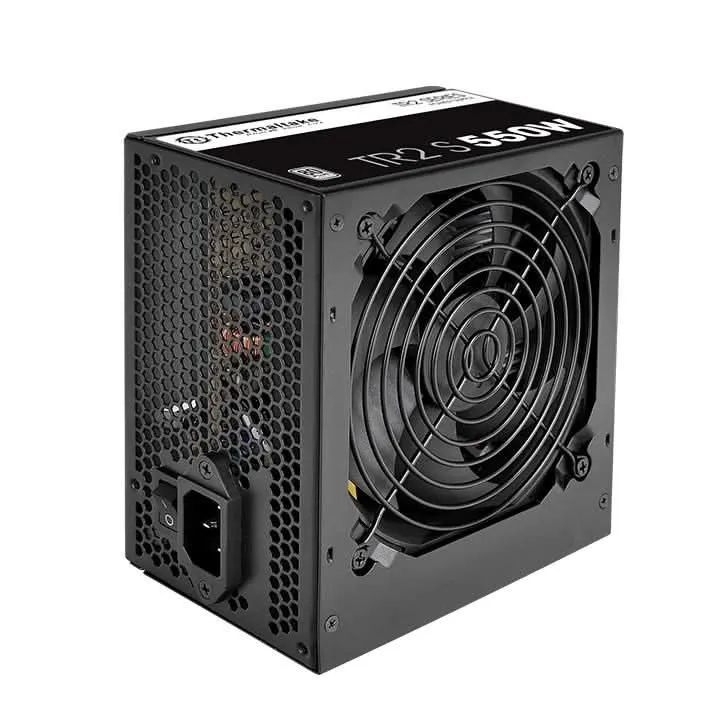

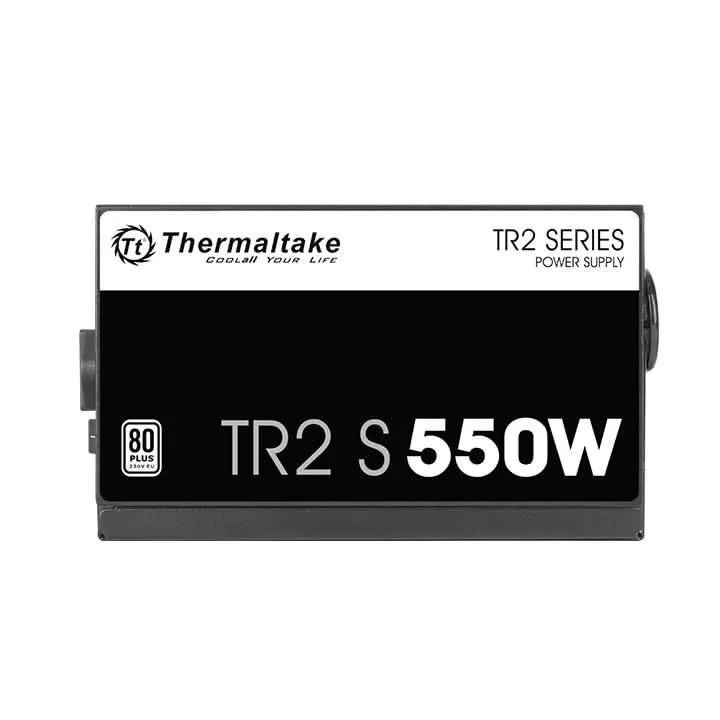

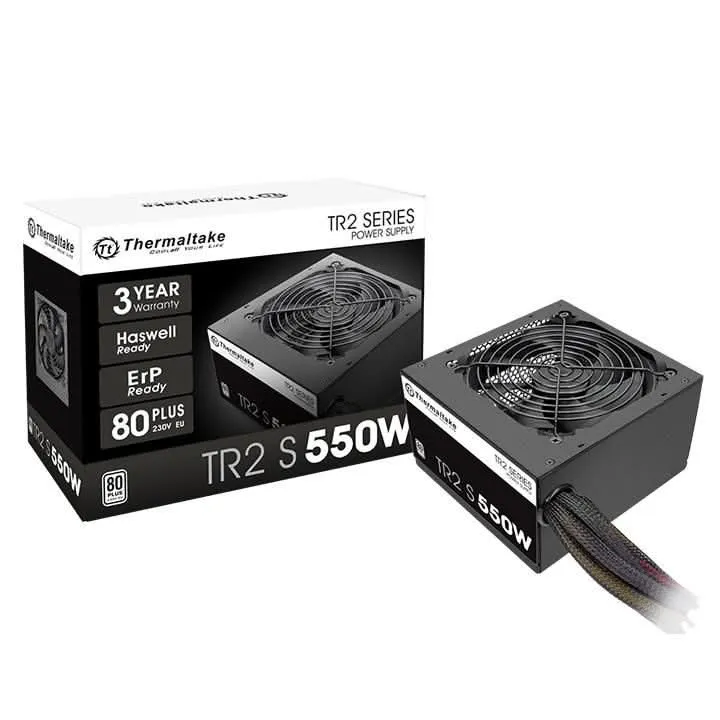

Thermaltake TR2 S 550W

Incorporating various high-quality components, the new TR2 S Series ñ models are rated from 350W to 700W ñ saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single 12V rail design enables non-stop usage with stable and reliable performance.

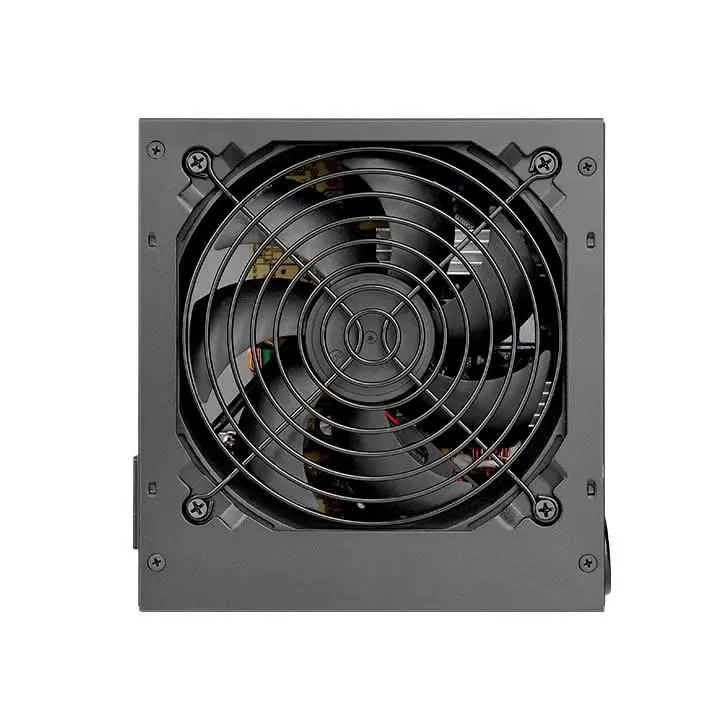

Ultra Quiet 120mm Fan

TR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

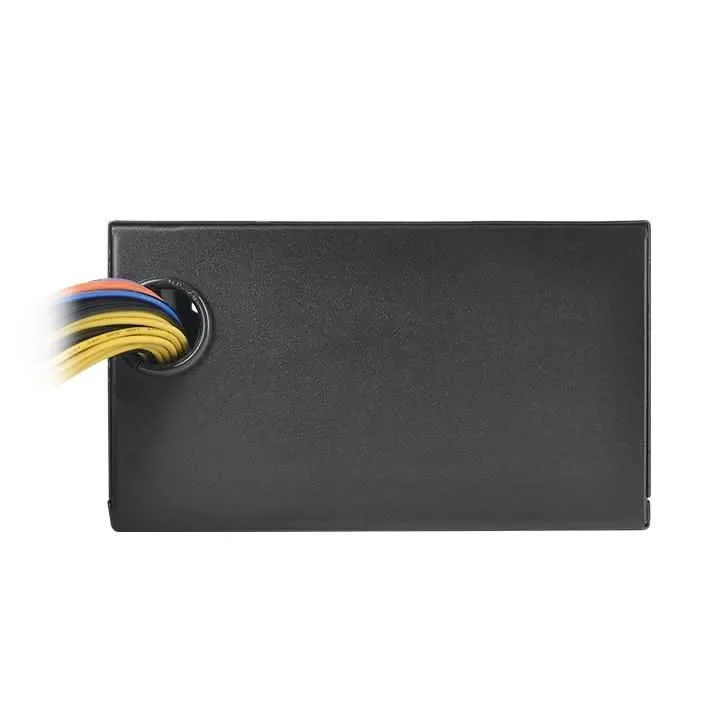

Multiple Connectors

The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage.

80 PLUS 230V Standard Certified and Kaby Lake-Ready

TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUSÆ 230V Standard certified. Additionally, TR2 S Series has been optimized to work with Intelís new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

82%, 85%, 82% efficiency at 20%, 50%, 100% Loading Guaranteed

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single 12V Output

TR2 S Series is equipped with powerful 12V rails, superior performance under all types of system loading. Please see the output specification below:

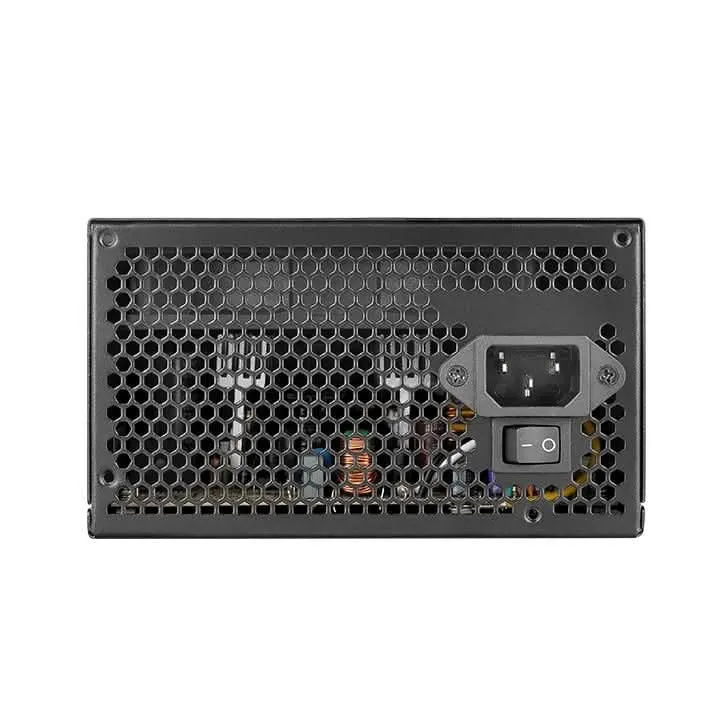

AC INPUT	Input Voltage: 230V Input Current: 7A max Frequency: 50Hz-60Hz
DC OUTPUT	3.3V	5V	12V	-12V	5Vsb
Max Output Current	21A	16A	38A	0.5A	2.5A
Max Output Power	105W		456W	6W	12.5W
Total Power	550W
