Product Details
＋
Product Overview

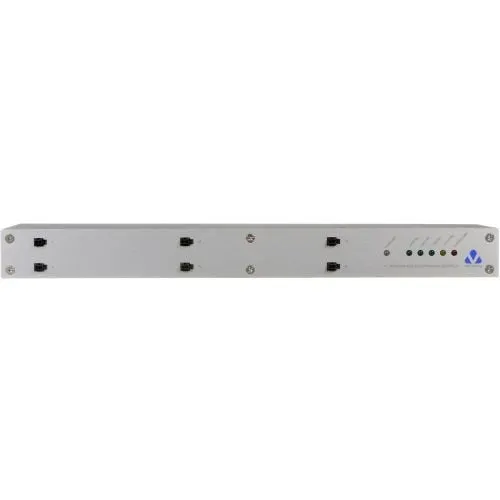

The VPSU-57V-1U-US Powerstar 57 VDC 1U Rackmount PSU from Veracity supplies 57 VDC power. This PSU is 1U rack-mountable, and is designed for Veracity's IP transmission products, including HIGHWIRE Base units.
This device is designed for use in the U.S.
Main Features
- Normal Input Voltage 100 - 240V AC
- Input Voltage/Frequency 50/60Hz
- Current Max 5A
- Normal Output Voltage 57V DC (x 6)
- Maximum Output Current 8.8A
- Product Case Dimensions L 442mm W 130mm H 44.5mm (without brackets)
- Weight 1860g, 4.1lb
- Operating Temperature 0º ~ 40ºC, [32ºF~ 104ºF], Full Load and natural convection
- Storage Temperature -10º ~ 70ºC, [14ºF~ 158ºF]
- Operating/Storage Humidity 10 ~ 90% RH (non-cond)
- Compliance EN60950, EN55022A, CE, ROHS, FCC, UL
- Patch Cables Supplied with 6 x 200mm DC Patch Cables
- Input Power Cord 3-PIN-US 3- PIN C13 Power Cord with US connector, (2 metre cord)
General Information
Name: Veracity VPSU-57V-1U-US Powerstar 57V 1U Rackmount Power Supply, Veracity USA, Inc, Veracity
Category: Veracity, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 892314002838
Country of Origin: China. Country of origin is subject to change.
